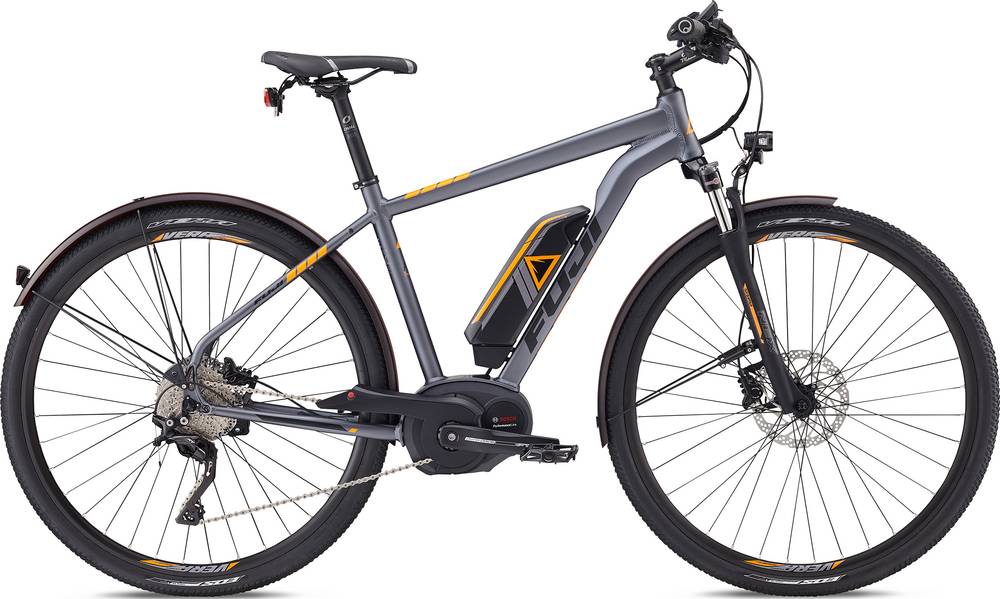

Fuji E-Traverse 1.1+ USA 2018
2018 E-bike
Estimate price |
3,299$
Weight | 21.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Power Pack 500Wh w/ charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, integrated head tube, semi-integrated battery
Suspension Fork
Suntour NEX disc, remote lockout, 700C coil, travel: 63mm, remote lockout, SKTM steerer
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow RD-T8000, 10-speed
Shift Levers
Shimano Deore 10-speed Rapid Fire Plus
Cassette
Shimano Deore 10-speed, 11-36T
Crank
FSA DynaDrive for Bosch drive unit, FSA 15T sprocket, w/ FSA chainring guard
Bottom Bracket
Bosch, press-fit
Chain
KMC X10E for e-bikes w/ MissingLink, 10-speed
Pedals
Wellgo, polished aluminum body, chromoly axle
Wheels
Rims
Shimano HB-M4050 CenterLock disc QR Front, Shimano FH-M3050 CenterLock disc QR Rear, 36H hubs, Vera DPD22 aluminum Double-Wall SSE rims
Tires
Vera EOS 700 x 38c, Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano BR-M506 hydraulic disc, 180mm front, 160mm rear
Brake Levers
Shimano BR-M506 hydraulic disc, 2-finger lever
Cockpit
Stem
Oval 313, 6061 aluminum, 31.8, 7°, ahead-style
Handlebar
Oval 200, 6061 aluminum, 31.8, 620mm wide, 15mm rise, 9° sweep
Grips
Oval Concepts Comfort SLO
Headset
1 1/8", zero stack, sealed
Seat
Saddle
Oval Concepts 300, steel rail
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Motor & Battery
Motor
Bosch Performance Cruise mid-motor, 250W rated power
Battery
Bosch Power Pack 500Wh w/ charger
Remote
Bosch Intuvia w/ mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.55 mm | 1.56 mm | 1.61 mm |
| Front Center | 628 mm | 630 mm | 651 mm | 661 mm |
| Rake | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm |
| Trail | 80 mm | 77 mm | 77 mm | 78 mm |
| Stack | 600 mm | 611 mm | 635 mm | 658.5 mm |
| Reach | 390 mm | 393 mm | 406 mm | 408 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 626 mm |
| Seat Tube Angle | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 440 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1097 mm | 1099 mm | 1120 mm | 1130 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 792 mm | 804 mm | 851 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm | 187 cm |
Model Overview
E-Traverse 1.1+ USA belongs to the Fuji E E Traverse model. 19 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Fuji E-Traverse 1.3 ST USA 2018 is the most economical model, with a starting price of 2799$. Fuji E-Traverse 1.1+ USA 2018 on the other hand costs 3299$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Fuji released this model in 2018, its price was 3299$. Doing a quick comparison, we notice that E-Traverse 1.1+ USA price is 33.02% more expensive than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 21.89 kg (48.26 lbs), Fuji e-bike is a bit lighter than average. To sum up, it’s 8.68% lighter than the average weight of Hybrid e-bikes.
E-Traverse 1.1+ USA components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Fuji E-Traverse 1.1+ USA 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
