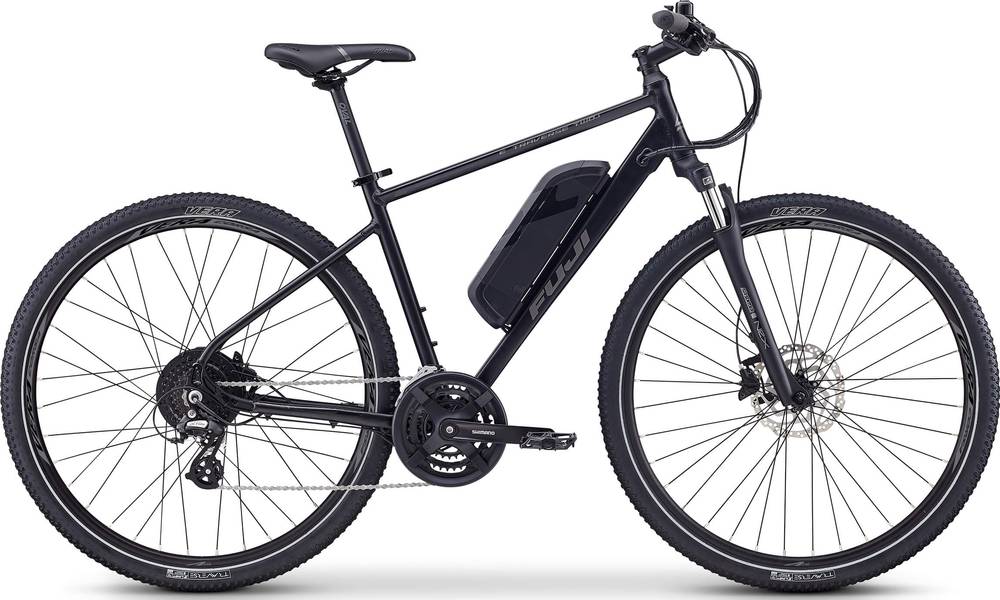

Fuji E-Traverse 2.1 2019
2019 E-bike
Estimate price |
1,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 417Wh w/ 2A charger -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 159cm
MD
158cm - 162cm
LG
161cm - 166cm
XL
165cm - 171cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL Custom-Butted Alloy, integrated head tube, down tube battery mount, fender and rack mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710
Shift Levers
Shimano Altus M310, Rapid Fire
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Shimano TY-301, 48/38/28T w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor hub, 6 bolt disc, 36H, stainless steel spokes, Vera Corsa DPD17 aluminum double wall rims
Tires
Vera Traverse 700 x 47c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 180mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
6061 aluminum, +/- 6° rise, 31.8mm clamp
Handlebar
Oval Concepts riser bar, 6061 alloy, 15mm rise, 5° sweep, 31.8mm clamp
Grips
Oval Concepts Comfort Single LO, single density Kraton
Headset
1 1/8", zero stack, sealed, caged bearings
Seat
Saddle
Oval Sport, steel rail
Seatpost
Oval Concepts, 6061 alloy micro adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
Battery
Fuji Power Pack 417Wh w/ 2A charger
Remote
Bafang 5 mode LED display w/ walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.55 mm | 1.57 mm | 1.58 mm | 1.63 mm |
| Front Center | 597 mm | 628 mm | 630 mm | 651 mm | 661 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 77 mm | 77 mm | 78 mm |
| Stack | 579 mm | 591 mm | 602 mm | 626 mm | 649.5 mm |
| Reach | 362 mm | 381 mm | 384 mm | 397 mm | 399 mm |
| Top Tube Length | 549 mm | 568 mm | 587 mm | 607 mm | 617 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1057 mm | 1088 mm | 1090 mm | 1111 mm | 1121 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 717 mm | 747 mm | 797 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 158 cm | 161 cm | 165 cm | cm |
| Rider Max Height | 159 cm | 162 cm | 166 cm | 171 cm | cm |
About this model
E-Traverse 2.1 belongs to the Fuji E E Traverse model. Fuji released 19 e-bikes variations of this model so far. Take a sneak peek at all Fuji E E Traverse e-bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Fuji E-Traverse 2.1 2019 has a starting price of 1399$. Fuji E-Traverse EVO 1.1 2019 on the other hand is the most expensive at 3699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Fuji released this model in 2019, its price was 1399$. Comparing the average cost of a Hybrid e-bike to this one, you will see that E-Traverse 2.1 price is 77.27% smaller.
E-Traverse 2.1 components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
The wheels on E-Traverse 2.1 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji E-Traverse 2.1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
