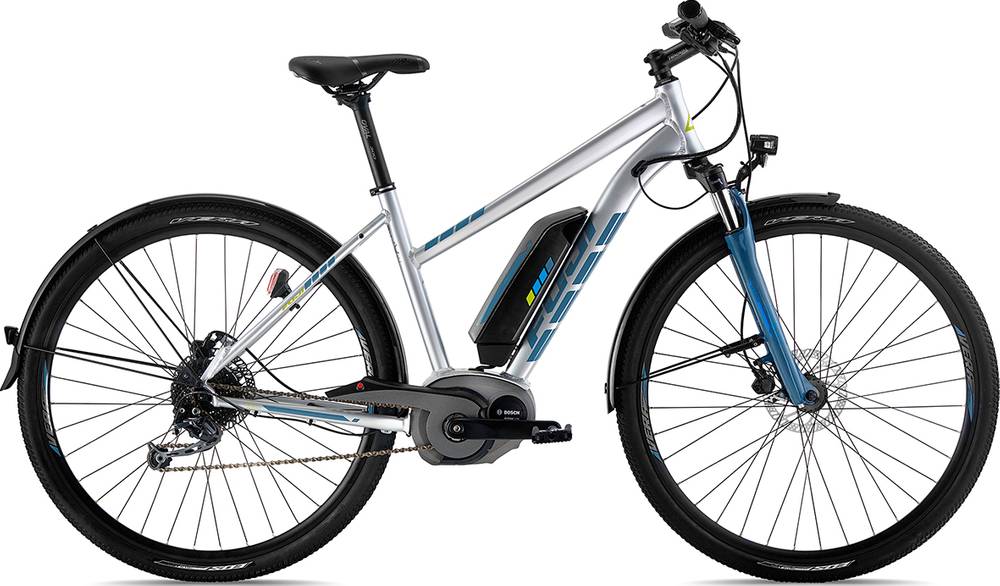

Fuji E Traverse Classic + ST 2017
2017 E-bike
Estimate price |
2,799$
Weight | 21.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Motor Bosch 250W hub-drive -
Battery Bosch Active PowerPack, Frame Type, 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2 Hydroformed Aluminum, Integrated Head Tube, Bosch Battery and Motor Interface, Custom-Tapered Aluminum
Suspension Fork
Suntour NEX Disc LO 700C Coil, Travel: 63mm, Lockout, SKTM steerer
Drivetrain
Rear Derailleur
Shimano Deore RD-M592 Shandow, 9-Speed
Shift Levers
Shimano Altus 9-Speed
Cassette
Shimano 9-Speed, 11-34T
Crank
Fuji Aluminium Forged crank arms for Bosch Drive Unit, FSA 15T Sprocket, w/ FSA chainring guard
Bottom Bracket
Bosch, press-fit
Chain
KMC X9E for e-bikes
Pedals
Wellgo, Polished Aluminum Body, Chromoly Axle
Wheels
Rims
Fuji Disc 6 bolts QR Front, Fuji Disc 6 bolts QR, 9 speed Rear, 36H Hubs, Vera DPD22 Aluminum Double-Wall SSE Rims
Tires
Vera EOS 700x38c, PHALANX Puncture Protection
Brakes
Brakes
Tektro HD-M285 Hydraulic Disc Brake, 160mm Front, 160mm Rear
Brake Levers
Tektro HD-M285 Hydraulic Disc Brake, 2-Finger Lever
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 200 riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts Comfort, lock on, single density Kraton
Headset
1 1/8", Zero Stack, Sealed
Seat
Saddle
Oval Concepts 300 Pavement, steel rail
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Motor & Battery
Motor
Bosch Active Cruise mid-motor, 250W
Battery
Bosch Active PowerPack, Frame Type, 400Wh
Remote
Bosch Intuvia Active Line
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.624 mm | 1.648 mm | 1.692 mm |
| Front Center | 632 mm | 642 mm | 629 mm | 639 mm |
| Rake | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm |
| Trail | 80 mm | 80 mm | 74 mm | 54 mm |
| Stack | 627 mm | 627 mm | 631 mm | 631 mm |
| Reach | 376 mm | 386 mm | 383 mm | 373 mm |
| Top Tube Length | 568 mm | 578 mm | 588 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 145 mm | 155 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1095 mm | 1105 mm | 1092 mm | 1102 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 764 mm | 761 mm | 762 mm | 762 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E Traverse Classic + ST is part of the Fuji E E model. Fuji launched 2 e-bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Fuji E Traverse Classic + ST 2017 is the cheapest e-bike model and costs 2799$. Fuji E Traverse Classic + 2017 is the most expensive one and costs 2799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 2799$. If we compare this with the average Hybrid e-bike cost we notice that the price is 12.86% higher.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 21.4 kg (47.18 lbs), the E Traverse Classic + ST model is considerably lighter than average. To sum up, it’s 11.17% lighter than the average weight of Hybrid e-bikes.
E Traverse Classic + ST components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the E Traverse Classic + ST model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
E Traverse Classic + ST comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
