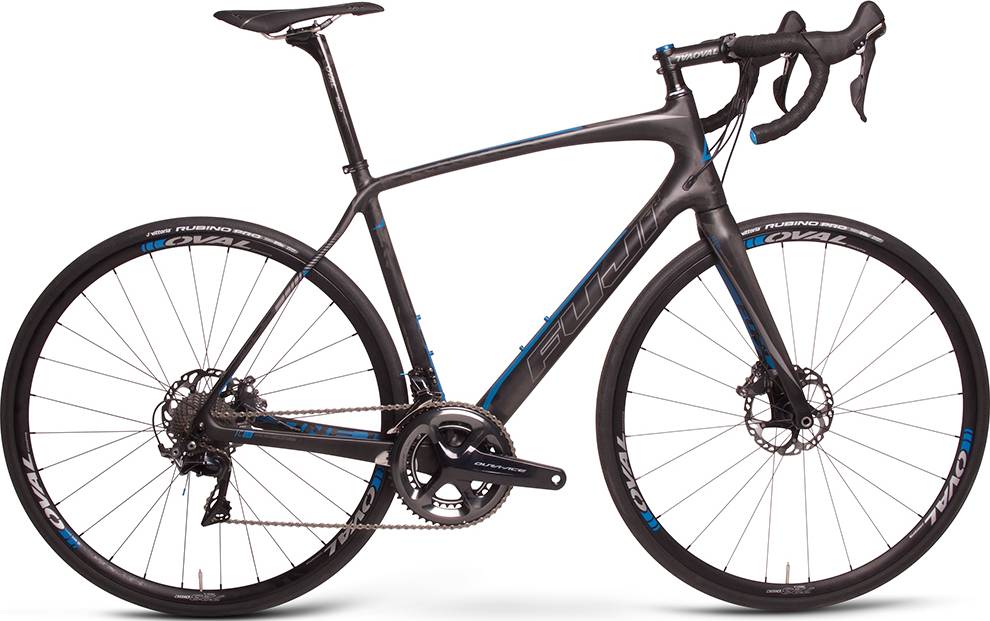

Fuji Gran Fondo 1.1 2017
2017 Road
Estimate price |
4,499$
Weight | 7.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon w/ VRTech, integrated head tube w/ 1 1/2" lower, internal cable routing, PF30 BB shell, double water bottle mounts, oversized ETC chainstays, 12mm convertible thru-axle system w/ replaceable hanger & hidden fender eyelet
Suspension Fork
FC-330 carbon monocoque w/ VRTech, tapered carbon steerer, 12mm thru-axle dropout, hidden fender eyelet
Drivetrain
Rear Derailleur
Shimano Dura-Ace, 11-speed
Front Derailleur
Shimano Dura-Ace, braze-on mount
Shift Levers
Shimano R-685 hydraulic, 11-speed
Cassette
Shimano Dura-Ac , 11-28T, 11-speed
Crank
Shimano Dura-Ace, 50/34T
Bottom Bracket
Praxis conversion bottom bracket
Chain
Shimano Dura-Ace, 11-speed
Pedals
N/A
Wheels
Rims
Oval Concepts 723 Disc, Centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H tubeless compatible rims
Tires
Vittoria Rubino Pro, 700 x 28, 150 tpi, folding
Brakes
Brakes
Shimano R-805 hydraulic, 160mm rotors
Brake Levers
Shimano R-685 hydraulic
Cockpit
Stem
Oval Concepts 707, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 910 Ergo, carbon, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval Concepts 700 with pressure relief zone, cromo rail
Seatpost
Oval Concepts 905, carbon & alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.44 mm | 1.51 mm | 1.56 mm | 1.6 mm | 1.6 mm | 1.6 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 579 mm | 582 mm | 585 mm | 579 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61.7 mm | 58.6 mm | 58.6 mm | 58.7 mm | 58.7 mm | 58.7 mm | 58.7 mm |
| Stack | 509 mm | 534 mm | 560 mm | 585 mm | 605 mm | 628 mm | 648 mm |
| Reach | 372 mm | 371 mm | 371 mm | 376 mm | 379 mm | 392 mm | 406 mm |
| Top Tube Length | 508 mm | 518 mm | 533 mm | 548 mm | 563 mm | 583 mm | 603 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 125 mm | 150 mm | 170 mm | 190 mm | 215 mm | 235 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 990 mm | 993 mm | 987 mm | 996 mm | 1016 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 711 mm | 739 mm | 767 mm | 791 mm | 811 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Gran Fondo 1.1 completes the Fuji Gran model. There are 58 bikes that carry this model name. You can easily view all of the Fuji Gran bikes models from 2017, here.
Model range prices
Fuji Gran Fondo Forza 1.1 2017 is the cheapest bike model and costs 1819$. Fuji Gran Fondo Elite 2017 is the most expensive one and costs 7239$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 4499$. Doing a quick comparison, we notice that Gran Fondo 1.1 price is 91.77% higher than the average cost of an Endurance bike.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Gran Fondo 1.1 weighs 7.27 kg (16.03 lbs) and is considerably lighter than the average. In conclusion, the average Endurance bike weighs 12.79% more than Gran Fondo 1.1.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gran Fondo 1.1 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Gran Fondo 1.1 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Gran Fondo 1.1 comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
