Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon, integrated head tube w/ 1 1/2" lower, internal cable routing, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, 10-speed
Front Derailleur
Shimano Ultegra Di2, braze-on mount
Shift Levers
Shimano Ultegra Di2 Electronic STI shifter/brake, Flight Deck-compatible, 20-speed
Cassette
Shimano 105, 11-28T, 10-speed
Crank
Rotor 3DF, 50/34T
Bottom Bracket
Rotor press-fit BB86-30 sealed bearing
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Oval 327 aero alloy clincher, 20/24H sealed bearing hubs, stainless bladed spokes
Tires
Vittoria Zaffiro Pro Slick, 60 tpi, 700c x 25mm, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra Di2 STI
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R700 w/ CrMo-Ti hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.46 mm | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 587 mm | 604 mm | 596 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm |
| Trail | 73 mm | 73 mm | -9669 mm | 57 mm | 68 mm | 69 mm |
| Stack | 526 mm | 550 mm | 568 mm | 598 mm | 619 mm | 642 mm |
| Reach | 393 mm | 401 mm | 389 mm | 385 mm | 410 mm | 424 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 441 mm | 470 mm | 500 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 210 mm | 235 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 999 mm | 1016 mm | 1008 mm | 1000 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 733 mm | 764 mm | 778 mm | 810 mm | 831 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

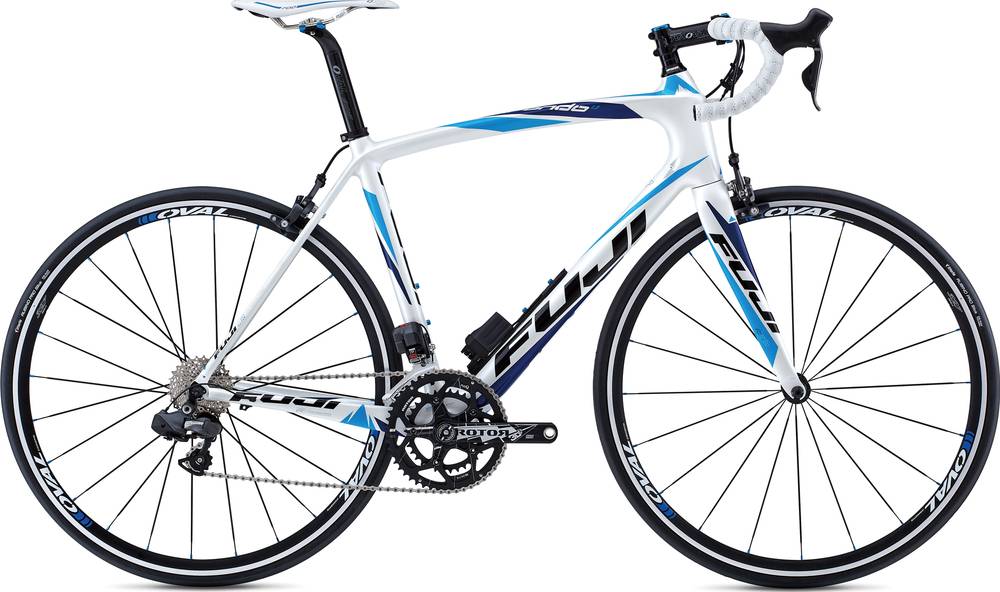

Gran Fondo 1.3 C completes the Fuji Gran model. 58 bikes variations carry this model name so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 7.92 kg (17.46 lbs), Fuji bike is slightly lighter than average. In other words, this model is 3.54% lighter than the average Endurance bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Gran Fondo 1.3 C bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
