Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D6 high modulus carbon, integrated head tube w/ 1 1/2" lower, internal cable routing, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, 10-speed
Front Derailleur
Shimano Ultegra Di2, braze-on mount
Shift Levers
Shimano Ultegra Di2 Electronic STI shifter/brake, 20-speed, Flight Deck compatible
Cassette
Shimano 105, 11-28T 10-speed
Crank
Rotor 3D+F, 34/50T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10, 10-speed
Wheels
Rims
Oval 330 aero alloy, 30mm rims, DT Swiss Champion spokes 20/24H, precision ground hubs
Tires
Hutchinson Equinox, 700x23c, folding
Brakes
Brakes
Oval 500 forged alloy dual pivot w/ cartridge pads
Brake Levers
Shimano Ultegra Di2 STI
Cockpit
Stem
Oval 700 3D forged 7050 alloy 31.8mm, +/-6 degrees
Handlebar
Oval 710 double-butted 7050 alloy, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Selle Italia X1 w/ FeC alloy rails
Seatpost
Oval 700 alloy 2-bolt, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.378 mm | 1.469 mm | 1.563 mm | 1.519 mm | 1.523 mm |
| Front Center | 59 mm | 60 mm | 60 mm | 59 mm | 61 mm | 63 mm |
| Rake | 5.2 mm | 5.2 mm | 5.2 mm | 4.3 mm | 4.3 mm | 4.3 mm |
| Trail | 111 mm | 111 mm | 108 mm | 99 mm | 100 mm | 100 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 73 ° | 73 ° | 73 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

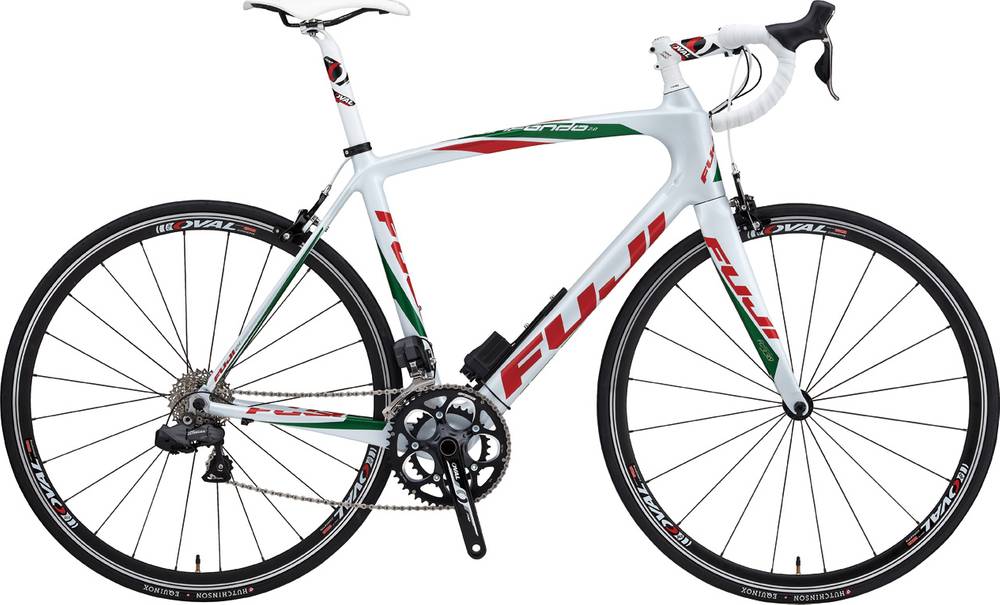

Gran Fondo 2.0 Di2 UL belongs to the Fuji Gran model. 58 bikes variations carry this model name so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gran Fondo 2.0 Di2 UL components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Gran Fondo 2.0 Di2 UL model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Gran Fondo 2.0 Di2 UL has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
