Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, internal cable routing, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra, 11-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra STI shifter/brake combo, Flight Deck-compatible, 22-speed
Cassette
Shimano Ultegra, 11-28T, 11-speed
Crank
Oval 720 hollow forged alloy, 50/34T
Bottom Bracket
Press-fit BB86 sealed bearing
Chain
KMC X11L, 11-speed
Pedals
N/A
Wheels
Rims
Oval 527 aero alloy clincher, 20/24H sealed bearing hubs, stainless bladed spokes
Tires
Vittoria Zaffiro Pro Slick, 60 tpi, 700c x 25mm, folding
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra STI
Cockpit
Stem
Oval 313 3D-forged 6061 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval R500 w/ CrMo hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.46 mm | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 587 mm | 604 mm | 596 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm |
| Trail | 73 mm | 73 mm | -9669 mm | 57 mm | 68 mm | 69 mm |
| Stack | 526 mm | 550 mm | 568 mm | 598 mm | 619 mm | 642 mm |
| Reach | 393 mm | 401 mm | 389 mm | 385 mm | 410 mm | 424 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 441 mm | 470 mm | 500 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 210 mm | 235 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 999 mm | 1016 mm | 1008 mm | 1000 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 733 mm | 764 mm | 778 mm | 810 mm | 831 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

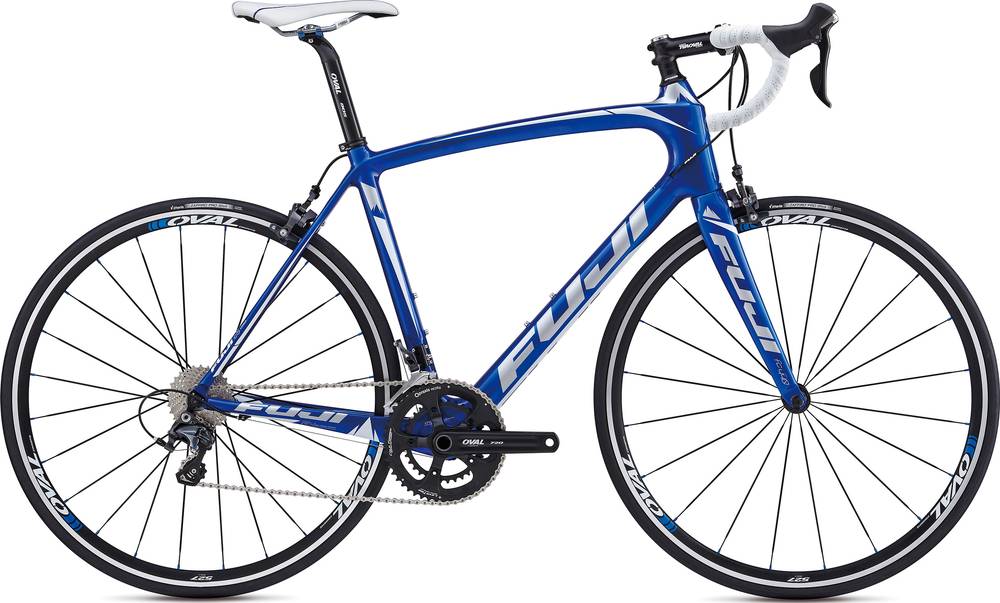

Gran Fondo 2.1 completes the Fuji Gran model. There are 58 bikes that carry this model name. Take a sneak peek at all Fuji Gran bikes models from 2014, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Gran Fondo 2.1 weighs 8.14 kg (17.95 lbs) and is slightly lighter than the average. To sum up, it’s 0.74% lighter than the average weight of Endurance bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gran Fondo 2.1 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Gran Fondo 2.1 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
