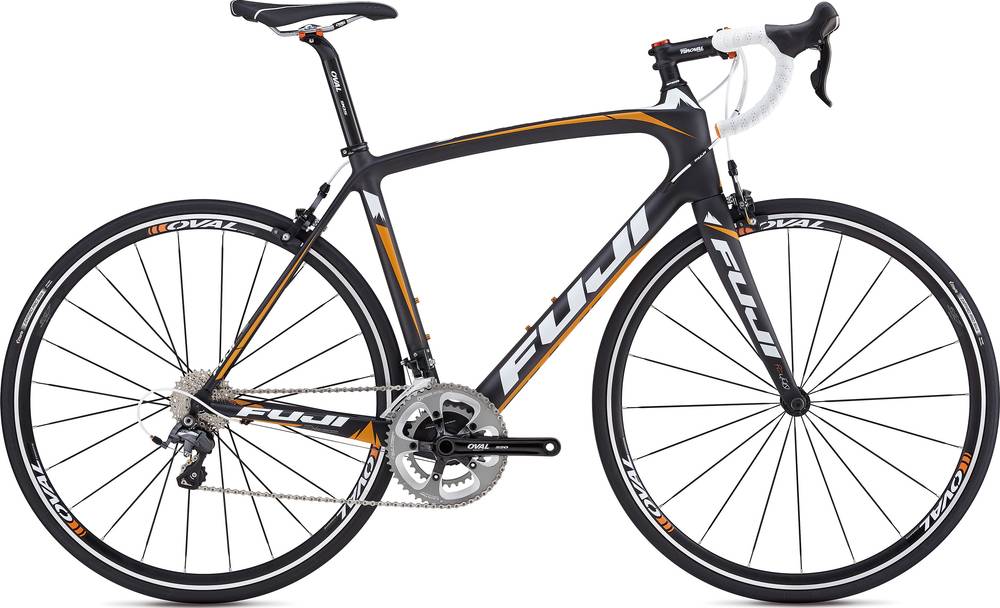

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, internal cable routing, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra, 10-speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano Ultegra STI shifter/brake combo, Flight Deck-compatible, 20-speed
Cassette
Shimano 105, 11-28T, 10-speed
Crank
Oval 520 forged alloy, 50/34T
Bottom Bracket
Press-fit BB86 sealed bearing
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Oval 327 aero alloy clincher, 20/24H precision road hubs, stainless bladed spokes
Tires
Vittoria Zaffiro Pro Slick, 60 tpi, 700c x 25mm, folding
Brakes
Brakes
Shimano 105
Brake Levers
Shimano Ultegra STI
Cockpit
Stem
Oval 313 3D-forged 6061 alloy, 31.8mm, +/- 7 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R500 w/ CrMo hollow rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.46 mm | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 587 mm | 604 mm | 596 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm |
| Trail | 73 mm | 73 mm | -9669 mm | 57 mm | 68 mm | 69 mm |
| Stack | 526 mm | 550 mm | 568 mm | 598 mm | 619 mm | 642 mm |
| Reach | 393 mm | 401 mm | 389 mm | 385 mm | 410 mm | 424 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 441 mm | 470 mm | 500 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 210 mm | 235 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 999 mm | 1016 mm | 1008 mm | 1000 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 733 mm | 764 mm | 778 mm | 810 mm | 831 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Gran Fondo 2.3 belongs to the Fuji Gran model. Fuji launched 58 bikes of this model so far. You can easily view all of the Fuji Gran bikes models from 2014, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Endurance bikes average weight
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 8.44 kg (18.61 lbs), the Gran Fondo 2.3 model is slightly heavier than average. In conclusion, the average Endurance bike weighs 2.93% less than Gran Fondo 2.3.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gran Fondo 2.3 components
Fork material
Gran Fondo 2.3 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Gran Fondo 2.3 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Gran Fondo 2.3 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
