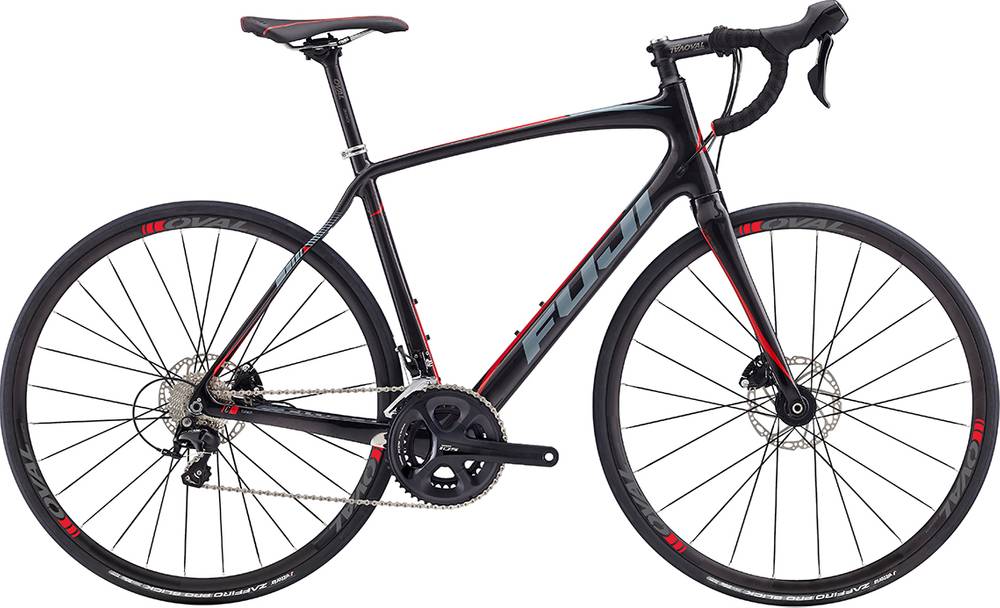

Fuji Gran Fondo 2.3 2017
2017 Road
Estimate price |
2,389$
Weight | 8.98 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon w/ VRTech, integrated head tube w/ 1 1/2" lower, internal cable routing, PF30 BB shell, double water bottle mounts, oversized ETC chainstays, 12mm convertible thru-axle system w/ replaceable hanger & hidden fender eyelet
Suspension Fork
FC-440 carbon monocoque w/ VRTech, tapered carbon steerer, 12mm thru-axle dropout, hidden fender eyelet
Drivetrain
Rear Derailleur
Shimano 105, 11-speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano ST-RS505 hydraulic, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Shimano 105 5800, 50/34T
Bottom Bracket
Praxis conversion bottom bracket
Chain
KMC X11, 11-speed w/ MissingLink
Pedals
N/A
Wheels
Rims
Oval Concepts 327 Disc, 6-bolt hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H rims
Tires
Vittoria Zaffiro Pro Slick, 700 x 28, 60tpi, folding
Brakes
Brakes
Shimano RS505 hydraulic, 160mm rotors
Brake Levers
Shimano ST-RS505
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts 300, steel rail
Seatpost
Oval Concepts 905, carbon & alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.44 mm | 1.51 mm | 1.56 mm | 1.6 mm | 1.6 mm | 1.6 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 579 mm | 582 mm | 585 mm | 579 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61.7 mm | 58.6 mm | 58.6 mm | 58.7 mm | 58.7 mm | 58.7 mm | 58.7 mm |
| Stack | 509 mm | 534 mm | 560 mm | 585 mm | 605 mm | 628 mm | 648 mm |
| Reach | 372 mm | 371 mm | 371 mm | 376 mm | 379 mm | 392 mm | 406 mm |
| Top Tube Length | 508 mm | 518 mm | 533 mm | 548 mm | 563 mm | 583 mm | 603 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 125 mm | 150 mm | 170 mm | 190 mm | 215 mm | 235 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 990 mm | 993 mm | 987 mm | 996 mm | 1016 mm | 1036 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 711 mm | 739 mm | 767 mm | 791 mm | 811 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
Gran Fondo 2.3 belongs to the Fuji Gran model. Fuji launched 58 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Fuji Gran Fondo Forza 1.1 2017 has a starting price of 1819$. Fuji Gran Fondo Elite 2017 on the other hand is the most expensive at 7239$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Fuji Gran Fondo 2.3 price was 2389$. Comparing the average cost of an Endurance bike to this one, you will see that Gran Fondo 2.3 price is 1.83% more expensive.
Average weight for Endurance bikes
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 8.98 kg (19.8 lbs), the Gran Fondo 2.3 model is a bit heavier than average. In conclusion, the average Endurance bike weighs 9.51% less than Gran Fondo 2.3.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Gran Fondo 2.3 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gran Fondo 2.3 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
