Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, oversized PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon w/ tapered carbon steerer w/ alloy dropout
Drivetrain
Rear Derailleur
Shimano 105, 11-speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano 105, STI, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Oval Concepts 520, forged 6066 arms, 50/34T
Bottom Bracket
Oval Concepts, BB86 press-fit
Chain
KMC X11 w/ Missing Link, 11-speed
Pedals
N/A
Wheels
Rims
Vera Corsa DPM27, double wall, 24/28h, Formula road hubs
Tires
Vittoria Zaffiro, 700 x 25, 26tpi
Brakes
Brakes
Alloy dual pivot
Brake Levers
Shimano 105, STI, 11-speed
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 300S, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.46 mm | 1.55 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 587 mm | 604 mm | 596 mm | 588 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm |
| Trail | 60.7 mm | 60.7 mm | 57.6 mm | 57.8 mm | 57.8 mm | 57.8 mm |
| Stack | 526 mm | 550 mm | 568 mm | 598 mm | 619 mm | 642 mm |
| Reach | 393 mm | 401 mm | 389 mm | 385 mm | 410 mm | 424 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 441 mm | 470 mm | 500 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 210 mm | 235 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 999 mm | 1016 mm | 1008 mm | 1000 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 733 mm | 764 mm | 778 mm | 810 mm | 831 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

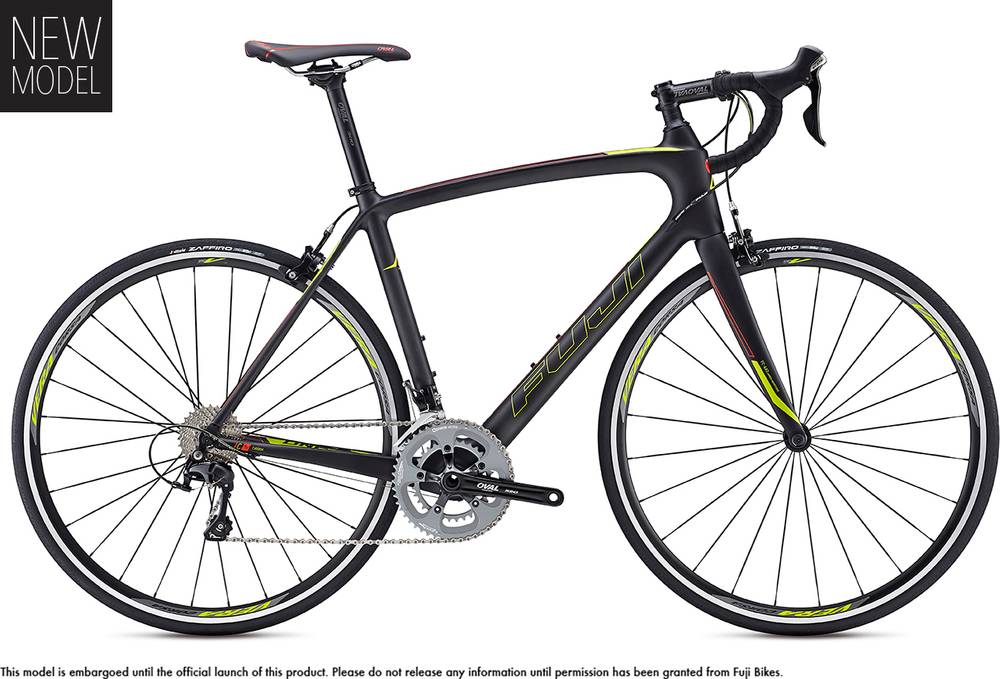

Gran Fondo Classico 1.3 is a Fuji Gran model. 58 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Gran Fondo Classico 1.3 it’s weighing 8.94 kg (19.71 lbs). At this weight, is a bit heavier than average. In short, the average Endurance bike weight is 9.02% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Gran Fondo Classico 1.3 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gran Fondo Classico 1.3 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
