Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 super-light carbon monocoque, semi-integrated oversized 1.5" lower head tube, 31.6mm round seat post, water bottle mount
Suspension Fork
Fox 32 FLOAT Performance CTD w/ 15mm thru axle, tapered alloy steerer, 120mm travel
Rear Shock
Fox Float Performance CTD
Drivetrain
Rear Derailleur
Shimano Deore XT, M786 SGS Shadow Plus top normal, 10-speed
Front Derailleur
Shimano Deore XT, M786D, direct-mount
Shift Levers
Shimano Deore XT, M780 Rapid Fire, 20/30-speed w/ Inspec
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano Deore XT, M785 hollow Tech II w/ integrated spindle, 40/28T
Bottom Bracket
Shimano BB91 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Shimano Deore XT M788 32H Center Lock disc hubs, Sun Inferno 23 rims
Tires
Schwalbe Nobby Nic, Evo 26" x 2.25" folding, 67 tpi
Brakes
Brakes
Shimano Deore XT M785, hydraulic disc, 180mm/160mm rotor
Brake Levers
Shimano Deore XT M785 hydraulic disc w/ Inspec
Cockpit
Stem
Oval M613, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M600, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M600, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.31 mm | 1.24 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Stack | 571.7 mm | 571.7 mm | 571.7 mm | 571.7 mm |
| Reach | 377.9 mm | 407.4 mm | 437 mm | 462.2 mm |
| Top Tube Length | 554 mm | 583.8 mm | 608.8 mm | 639 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1053 mm | 1083 mm | 1108 mm | 1139 mm |
| Standover Height | 787 mm | 801 mm | 816 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

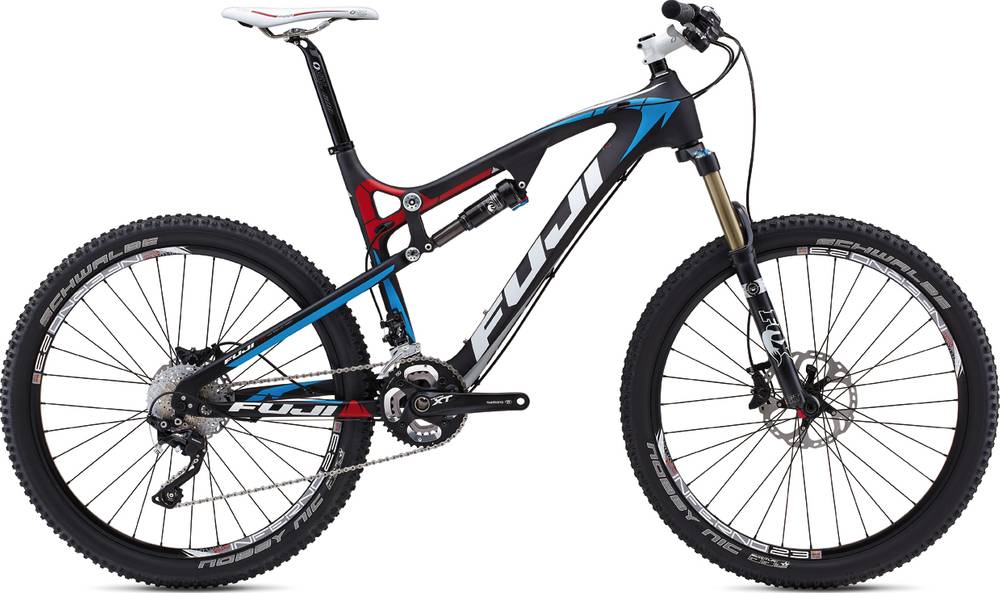

Mt Fuji 1.1 D is a Fuji Mt model. Fuji launched 26 bikes of this model so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 11.5 kg (25.35 lbs), the Mt Fuji 1.1 D model is considerably lighter than average. To sum up, it’s 12.87% lighter than the average weight of Trail bikes.
Mt Fuji 1.1 D components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Mt Fuji 1.1 D 2013 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mt Fuji 1.1 D comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
