Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 super-light carbon monocoque, semi-integrated oversized 1.5" lower head tube, 31.6mm round seat post, water bottle mount
Suspension Fork
Fox 32 FLOAT Evolution CTD w/ 15mm thru axle, tapered alloy steerer, 120mm travel
Rear Shock
Fox Float Evolution CTD
Drivetrain
Rear Derailleur
Shimano XT, M786 SGS Shadow Plus top normal, 10-speed
Front Derailleur
Shimano SLX, M676, direct-mount
Shift Levers
Shimano SLX, M670 Rapid Fire, 20/30-speed w/ Inspec
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano SLX, M675 hollow Tech II w/ integrated spindle, 40/28T
Bottom Bracket
Shimano BB91 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Formula CL-81 front / CL-142s rear 32H Center Lock disc hubs, Sun Inferno 23 rims
Tires
Schwalbe Nobby Nic, Evo 26" x 2.25" / 26" x 2.1" folding, 67 tpi
Brakes
Brakes
Shimano SLX M675, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano SLX M675 hydraulic
Cockpit
Stem
Oval M313, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M200, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M400 w/ satin steel rails
Seatpost
Oval M300, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.31 mm | 1.24 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Stack | 571.7 mm | 571.7 mm | 571.7 mm | 571.7 mm |
| Reach | 377.9 mm | 407.4 mm | 437 mm | 462.2 mm |
| Top Tube Length | 554 mm | 583.8 mm | 608.8 mm | 639 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1053 mm | 1083 mm | 1108 mm | 1139 mm |
| Standover Height | 787 mm | 801 mm | 816 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

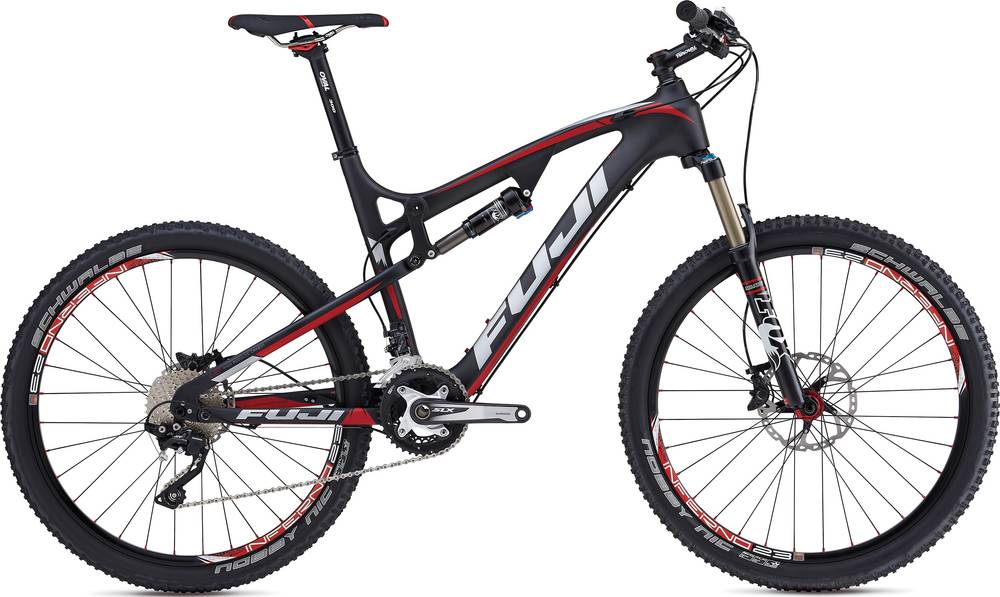

Mt Fuji 1.3 is a Fuji Mt model. Fuji released 26 bikes variations of this model so far. Take a sneak peek at all Fuji Mt bikes models from 2014, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Mt Fuji 1.3 it’s weighing 11.4 kg (25.13 lbs). At this weight, is considerably lighter than average. In conclusion, the average Trail bike weighs 13.86% more than Mt Fuji 1.3.
Overview of components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Mt Fuji 1.3 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
