Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset XTR -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW A-6 Quaternary phase custom btutted alloy, Tri shaped top tube, Oversized seat tube and Integrated head tube, double water bottle mounts
Suspension Fork
Fuji PGC Carbon Rigid MTB
Drivetrain
Rear Derailleur
Shimano XTR Shadow
Front Derailleur
Shimano Deore XT, 34.9mm
Shift Levers
Shimano Deore XT Rapid Fire, 27-speed
Cassette
Shimano Deore XT, 11-34T 9-speed
Crank
Shimano Deore XT, 22/32/44T Alloy Outer Ring
Bottom Bracket
Shimano Exterior Bearing System
Chain
KMC X-9SL Hollow
Pedals
Xpedo MF-3 Clipless
Wheels
Front Hub
Shimano Deore XT Sealed Bearing Disc, CL 32H
Rear Hub
Shimano Deore XT Sealed Bearing Disc, CL 32H
Rims
Mavic XC-717 Disc, 32H
Spokes
DT Swiss 14G DB Stainless Steel
Tires
Schwalbe Furious Fred 26 X 2.1" Foldable
Brakes
Brakes
Magura Marta SL Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Magura Marta SL
Cockpit
Stem
Ritchey WCS 2014 3D Forged Alloy, 1 1/8"
Handlebar
Ritchey WCS DB Alloy Flatbar
Headset
Ritchey Logic Zero Pro 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
Ritchey Streem WCS w/Ti Rails
Seatpost
Ritchey WCS forged Al, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 295 mm |
| Front Center | 605 mm | 640 mm | 666 mm | 691 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 543.1 mm | 578.2 mm | 603.1 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1021 mm | 1056 mm | 1081 mm | 1107 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 728 mm | 750 mm | 780 mm | 818 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

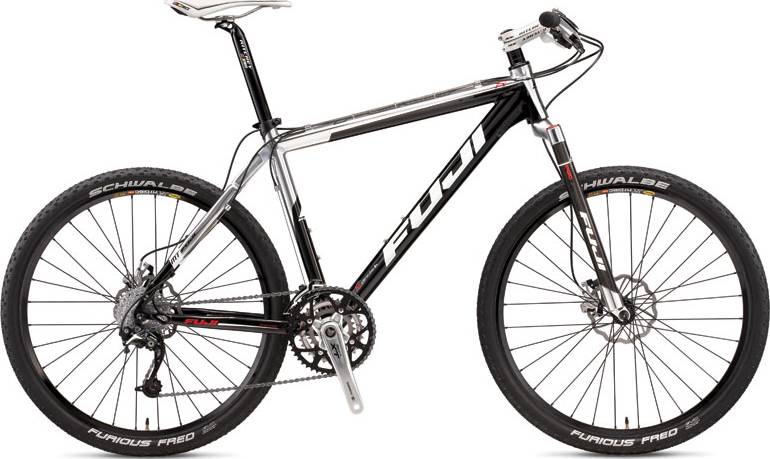

Model Overview
MT. FUJI R completes the Fuji Mt model. Fuji launched 26 bikes of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MT. FUJI R weighs 9.46 kg (20.86 lbs) and is much lighter than the average. In short, the average Crosscountry bike weight is 31.08% higher than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Fuji MT. FUJI R 2010, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji MT. FUJI R has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Fuji MT. FUJI R bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
