Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Fork RockShox SID -
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW A-6 Quaternary phase custom btutted alloy, Tri shaped top tube, Oversized seat tube and Integrated head tube, double water bottle mounts
Suspension Fork
Rock Shox SID Race w/ PopLoc Remote & 100mm Travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore XT, 34.9mm
Shift Levers
Shimano Deore XT Rapid Fire, 27-speed
Cassette
Shimano CS-HG80, 11-34T 9-speed
Crank
Shimano Deore XT, 22/32/44T Alloy Outer Ring
Bottom Bracket
Shimano Exterior Bearing System
Chain
Shimano HG-73
Pedals
Xpedo MF-3 Clipless
Wheels
Front Hub
Shimano Deore XT Sealed Bearing Disc, CL 32H
Rear Hub
Shimano Deore XT Sealed Bearing Disc, CL 32H
Rims
Mavic XM-317 Disc, 32H
Spokes
DT Swiss 14G DB Stainless Steel
Tires
Schwalbe Race Ralph 26 X 2.1" Foldable
Brakes
Brakes
Shimano Deore XT Hydraulic Disc, 180/160mm Centerlock rotor
Brake Levers
Shimano Deore XT
Cockpit
Stem
Fuji PGC Alloy oversize, 1 1/8"
Handlebar
Fuji PGC FlatBar double butted 7075 aluminum, 31.8mm
Headset
Ritchey Logic Zero Pro 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
Ritchey Streem WCS w/Ti Rails
Seatpost
Fuji PGC forged 7075 Aluminum micro adjust, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 295 mm |
| Front Center | 605 mm | 640 mm | 666 mm | 691 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 543.1 mm | 578.2 mm | 603.1 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1021 mm | 1056 mm | 1081 mm | 1107 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 728 mm | 750 mm | 780 mm | 818 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

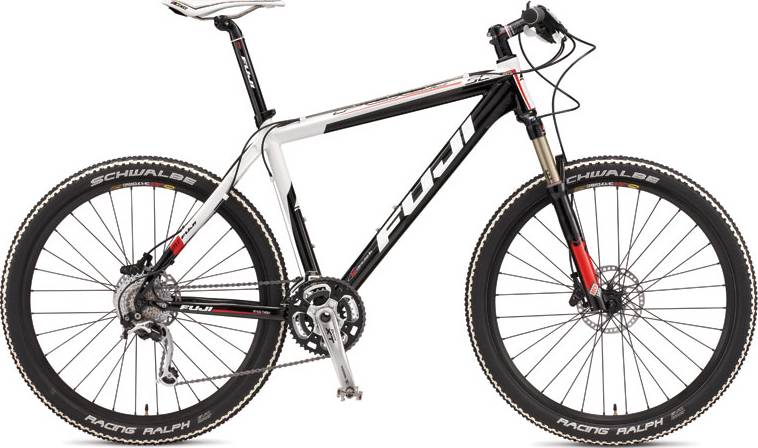

MT. FUJI SL is a Fuji Mt model. Fuji launched 26 bikes of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Fuji MT. FUJI SL 2010 bike is equipped with the RockShox SID fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on MT. FUJI SL are the 26″ aluminum type. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
