Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour XCM HLO
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW Fuji Altair 1 aluminum with PowerCurve down tube, Tri shaped top tube, Oversized seat tube and integrated head tube, double water bottle mounts
Suspension Fork
SR Suntour XCM-HLO w/Hydraulic LO & 80mm Travel
Drivetrain
Rear Derailleur
NEW Shimano Deore Shadow
Front Derailleur
Shimano Acera, 34.9mm
Shift Levers
Shimano Acera SL-M360 EZ Fire shifter, 24-speed
Cassette
Shimano CS-HG-30, 11-32T 8-speed
Crank
Shimano FC-M361, 22/32/42T with Chaingaurd
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC Z-72
Pedals
Wellgo ATB w/steel cage
Wheels
Front Hub
Fuji Sealed Bearing Disc, IS 32H
Rear Hub
Fuji Sealed Bearing Disc, IS 32H
Rims
Alex DP-17 Double Wall Al Disc
Spokes
14G Stainless Steel
Tires
Kenda K-837F/K-848R ATB, 26 x 2.1"
Brakes
Brakes
Tektro Auriga Comp Hydraulic Disc w/ 160mm Rotor
Brake Levers
Tektro Auriga Comp
Cockpit
Stem
Fuji Forged Aluminum w/ removable faceplate
Handlebar
Fuji Riser 20 aluminum
Headset
V.P. 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
Fuji Race MTB
Seatpost
Fuji Aluminum micro-adjust, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 606 mm | 642 mm | 662 mm | 693 mm | 713 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 543 mm | 578 mm | 598 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1027 mm | 1062 mm | 1083 mm | 1113 mm | 1134 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 741 mm | 766 mm | 793 mm | 821 mm | 851 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

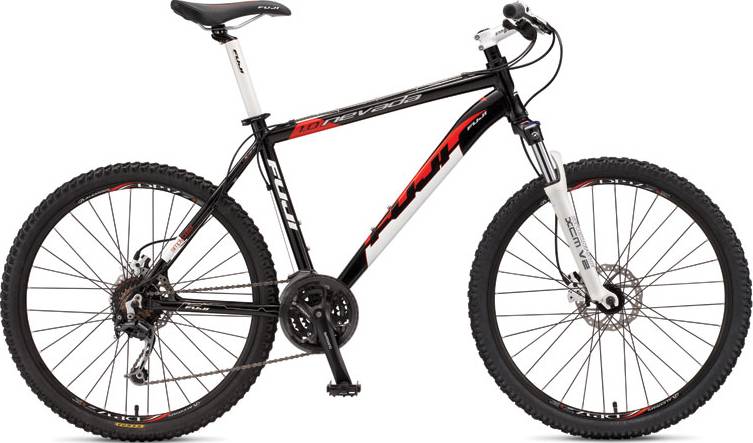

NEVADA 1.0-EURO completes the Fuji Nevada model. Fuji launched 241 bikes of this model so far. Take a sneak peek at all Fuji Nevada bikes models from 2010, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.45 kg (31.86 lbs), the NEVADA 1.0-EURO model is much heavier than average. To sum up, it’s 16.53% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Fuji NEVADA 1.0-EURO 2010 bike is equipped with the SunTour XCM HLO fork, and has 80mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on NEVADA 1.0-EURO are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji NEVADA 1.0-EURO has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
NEVADA 1.0-EURO comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
