Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF14-XCR-RL w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore Octalink, 40/30/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Shimano RM33 front / Shimano RM33 rear Center Lock disc hubs, 14G stainless black spokes
Tires
Schwalbe Black Jack, 26" x 2.1", 50 tpi
Brakes
Brakes
Shimano M355, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M355, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 5° sweep, 15mm rise, 640mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533.4 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 744 mm | 778 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

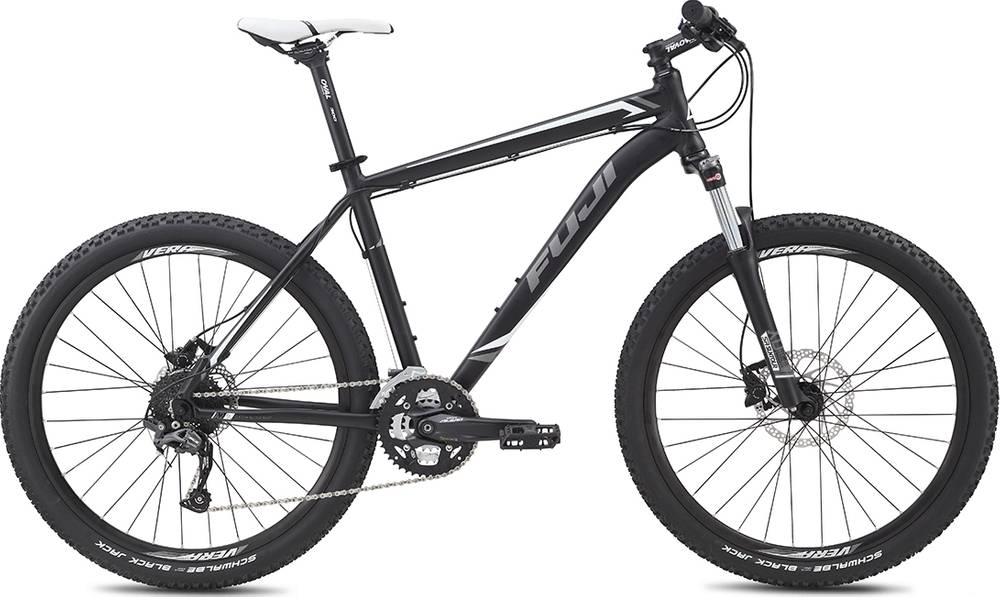

Nevada 1.3 belongs to the Fuji Nevada model. Fuji launched 241 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Nevada 1.3 weighs 14.29 kg (31.5 lbs) and is much heavier than the average. In other words, this model is 15.24% heavier than the average Crosscountry bike.
Nevada 1.3 components
Fork
This bike has the SunTour XCR fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Fuji Nevada 1.3 2015, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nevada 1.3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
