Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCM-HLO w/ Hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, M591 SGS, 9-speed
Front Derailleur
Shimano Acera, M390, 34.9mm
Shift Levers
Shimano Alivio, M430 Rapid Fire, 9-speed
Cassette
Shimano HG20, 11-34T, 9-speed
Crank
Shimano Alivio, M4308 Octalink, 44/32/22T
Bottom Bracket
Shimano ES25 Octalink
Chain
KMC X9, 9-speed
Pedals
Alloy platform
Wheels
Rims
Formula DC-20LW front / Shimano M475 rear, 32H disc hubs, Vera DPD22 rims
Tires
Hutchinson Scorpion, 26" x 2.0", 33 tpi
Brakes
Brakes
Hayes Dyno Comp, hydraulic disc, 160mm rotor
Brake Levers
Hayes Dyno Comp hydraulic
Cockpit
Stem
Oval M213, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy riser bar, 9° sweep, 31.8mm diameter, 660mm wide, 15mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval M200 w/ satin steel rails
Seatpost
Oval M200, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 711 mm | 749 mm | 779 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

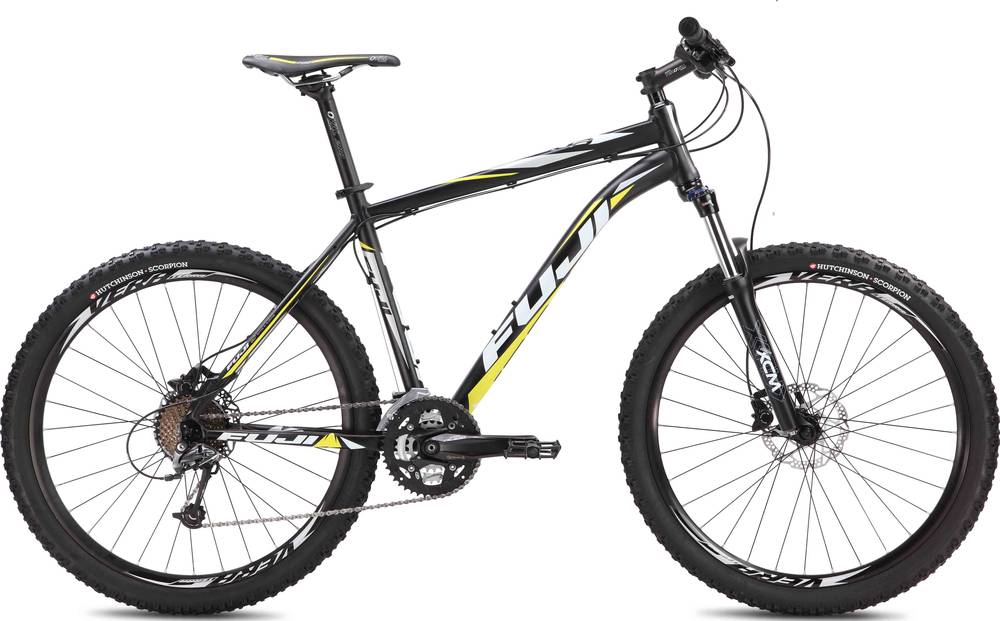

Nevada 1.3 D is a Fuji Nevada model. Fuji released 241 bikes variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.13 kg (31.15 lbs), Fuji bike is considerably heavier than average. To sum up, it’s 13.95% heavier than the average weight of Crosscountry bikes.
Nevada 1.3 D components
Fork
Fuji Nevada 1.3 D 2013 bike is equipped with the SunTour XCM HLO fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Fuji Nevada 1.3 D 2013, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 1.3 D has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
