Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCT-MLO w/ mechanical lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, M360 SGS, 8-speed
Front Derailleur
Shimano Altus, M310, 34.9mm
Shift Levers
Shimano Altus, SLM310 Rapid Fire, 8-speed
Cassette
Shimano HG31, 11-34T, 8-speed
Crank
SR Suntour XCT, 42/32/22T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC, HV700, 8-speed
Pedals
Plastic platform
Wheels
Rims
Formula DC-20 front / DC-22 rear, 32H hubs w/ Vera Terra DPD18 rims
Tires
Vera Eos, 26" x 2.1", 30 tpi
Brakes
Brakes
Promax Decipher, hydraulic disc, 180mm/160mm rotor
Brake Levers
Promax Decipher, hydraulic disc
Cockpit
Stem
Oval, melt-forged alloy, 31.8mm clamp diameter, 10° rise
Handlebar
Steel rise bar, 6° degree sweep, 31.8mm diameter, 680mm wide, 19mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Oval, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533.4 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 711 mm | 749 mm | 779 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

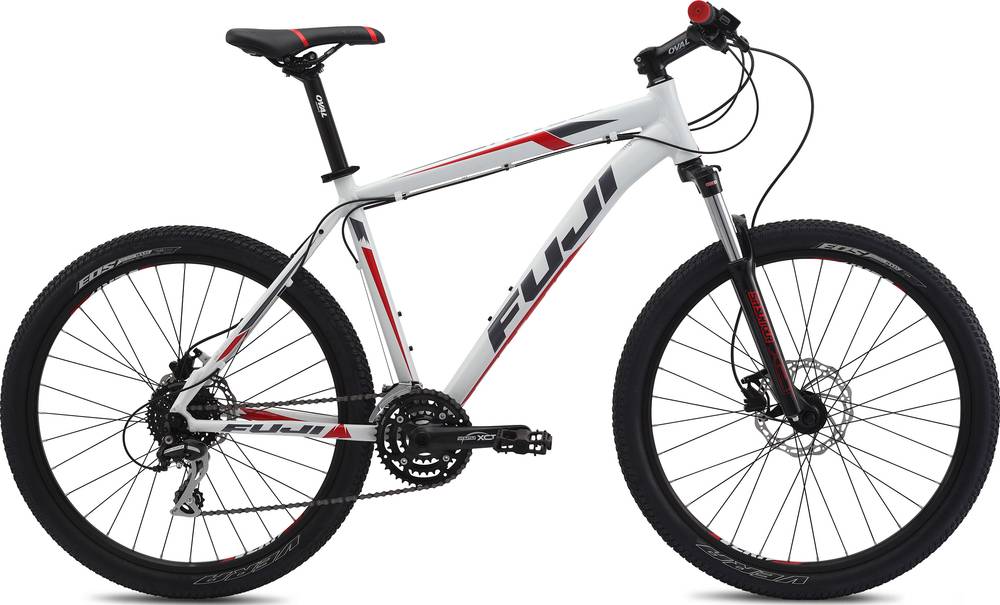

Nevada 1.6 completes the Fuji Nevada model. Fuji released 241 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Nevada 1.6 it’s weighing 14.7 kg (32.41 lbs). At this weight, is much heavier than average. To sum up, it’s 18.55% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Fuji Nevada 1.6 2014 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Nevada 1.6 2014 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 1.6 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
