Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCT-MLO w/ mechanical lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, M360 SGS, 8-speed
Front Derailleur
Shimano Alivio, M310, 34.9mm
Shift Levers
Shimano EF51 EZ Fire, 8-speed
Cassette
Shimano HG31, 11-34T, 8-speed
Crank
SR Suntour XCT, 42/32/22T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC, HV700, 8-speed
Pedals
Plastic platform
Wheels
Rims
Shimano DH-3D30 6V/3.0w front / DC-22 rear, 32H hubs w/ Vera Terra DPD18 rims
Tires
Vera Eos, 26" x 2.1", 30 tpi
Brakes
Brakes
Mechanical disc, 160mm rotor
Brake Levers
Shimano EF51 2-finger brake/shifter combo
Cockpit
Stem
Oval, melt-forged alloy, 31.8mm clamp diameter, 10° rise
Handlebar
Steel rise bar, 6° degree sweep, 31.8mm diameter, 660mm wide, 19mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Oval, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533.4 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 711 mm | 749 mm | 779 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

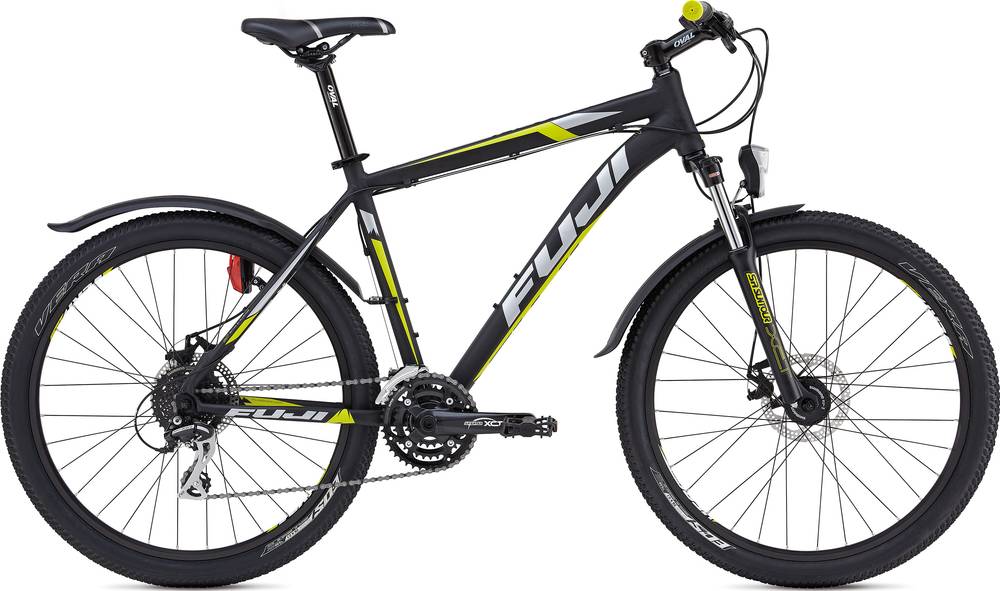

Nevada 1.7 D Eqp. belongs to the Fuji Nevada model. 241 bikes variations carry this model name so far. You can easily view all of the Fuji Nevada bikes models from 2014, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Nevada 1.7 D Eqp. has a weight of 15.44 kg (34.04 lbs). To sum up, it’s 24.52% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Nevada 1.7 D Eqp. model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
