Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCT w/ 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney, TX35, 7-speed
Front Derailleur
Shimano Tourney, TX51, 34.9mm
Shift Levers
Shimano EF40 EZ Fire, 7-speed
Cassette
Shimano Tourney TZ31 freewheel, 14-34T, 7-speed
Crank
Shimano M131, 48/38/28T w/ chainguard
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
Fixed Star, FG-50, 7-speed
Pedals
Plastic platform
Wheels
Rims
Formula FM21 front / FM31 rear, alloy 32H hubs, Vera Terra SPM16
Tires
Vera Eos, 26" x 2.1", 30 tpi
Brakes
Brakes
Tektro alloy, linear pull
Brake Levers
Shimano EF40 2-finger brake/shifter combo
Cockpit
Stem
Fuji, melt-forged alloy, 25.4mm clamp diameter, 20° rise
Handlebar
Fuji steel rise bar, 6° degree sweep, 25.4mm diameter, 660mm wide, 30mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Fuji, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 711 mm | 749 mm | 779 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

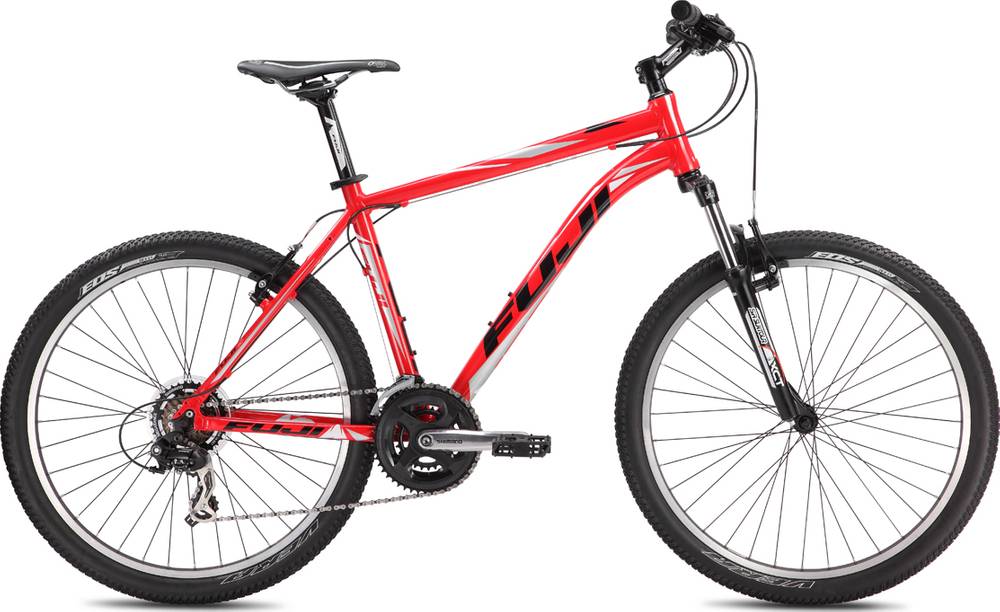

Nevada 1.9 belongs to the Fuji Nevada model. Fuji launched 241 bikes of this model so far. Take a sneak peek at all Fuji Nevada bikes models from 2013, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Nevada 1.9 weighs 14.17 kg (31.24 lbs) and is considerably heavier than the average. To sum up, it’s 14.27% heavier than the average weight of Crosscountry bikes.
Nevada 1.9 components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Nevada 1.9 2013 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Nevada 1.9 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
