Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour XCM
-
Groupset Alivio, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 1 Aluminum with PowerDiamond down tube, top tube/seat tube gusset, Integrated head tube, down tube gusset, double water bottle mounts
Suspension Fork
NEW SR Suntour XCM-LO 28mm stanchions, 80mm travel w/Mechanical LO
Drivetrain
Rear Derailleur
NEW Shimano Alivio
Front Derailleur
SR Suntour XCM 202, 31.8mm top pull
Shift Levers
Shimano Acera EZ Fire shifter/brake, 24-speed
Cassette
SR Suntour PF-44, 11-32T 8-speed
Crank
NEW SR Suntour Epicon, 22/32/42T with Chaingaurd
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC Z-72
Pedals
Wellgo ATB w/steel cage
Wheels
Front Hub
Formula oversized sealed Al, 36H w/QR
Rear Hub
Formula oversized sealed Al cassette, 36H w/QR
Rims
Jalco ATB-220 Double Wall Aluminum /CNC Sidewalls
Spokes
14G Stainless Steel
Tires
IRC Mythos XC, 26 x 2.1"
Brakes
Brakes
ProMax forged Aluminum, linear pull
Brake Levers
Shimano Acera EZ Fire shifter/brake
Cockpit
Stem
Fuji Comp forged Aluminum w/removable faceplate
Handlebar
Fuji Comp Riser 20 aluminum 31.8mm
Headset
V.P. 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
Fuji Race MTB
Seatpost
Fuji Aluminum micro-adjust, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 20.5" | 22" | 24" |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 296.2 mm | 296.2 mm | 296.2 mm | 296.2 mm | 296.2 mm | 296.2 mm |
| Front Center | 584 mm | 619 mm | 639 mm | 655 mm | 665 mm | 681 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 528 mm | 568 mm | 588 mm | 603 mm | 618 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 521 mm | 559 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 999 mm | 1034 mm | 1055 mm | 1071 mm | 1081 mm | 1096 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 701 mm | 725 mm | 757 mm | 786 mm | 811 mm | 859 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

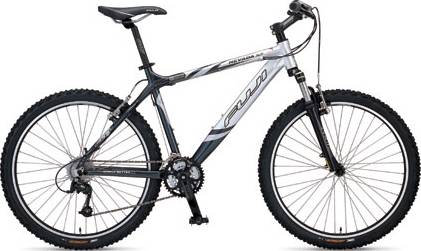

Nevada 2.0 is a Fuji Nevada model. Fuji launched 241 bikes of this model so far. You can get a glimpse at all models from 2007, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Nevada 2.0 it’s weighing 13.3 kg (29.32 lbs). At this weight, is a bit heavier than average. In other words, this model is 7.26% heavier than the average Crosscountry bike.
Nevada 2.0 components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Nevada 2.0 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Nevada 2.0 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
