Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A1-SL alloy w/ PowerCurve down tube, hydroformed top tube, oversized seat tube and semi-integrated head tube, double water bottle mounts
Suspension Fork
SR Suntour XCM w/ mechanical lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore SGS top normal, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio Rapid Fire, 27-speed
Cassette
Shimano HG20, 11-34T 9-speed
Crank
Shimano Alivio, 22/32/44T
Bottom Bracket
Sealed cartridge bearing square taper
Chain
KMC Z99, 9-speed
Pedals
FPD w/ Boron axle
Wheels
Rims
Fuji mountain disc 32H hubs, Jalco AX430 alloy disc rims
Tires
Hutchinson Scorpion 26x2.0 or Kenda K-837F/K-848R ATB, 26x2.1"
Brakes
Brakes
Tektro Draco hydraulic disc, 160mm rotor
Brake Levers
Tektro Draco hydraulic disc
Cockpit
Stem
Fuji forged alloy w/ removable faceplate
Handlebar
Fuji alloy riser bar, 20mm rise, 6° sweep, 31.8mm, 640mm wide
Headset
Fuji custom 1 1/8" semi-integrated, 30mm spacers
Seat
Saddle
Fuji sport mountain w/ steel rails
Seatpost
Fuji alloy micro-adjust, 31.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Top Tube Length | 543 mm | 578 mm | 598 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1029 mm | 1065 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 749 mm | 786 mm | 816 mm | 840 mm | 873 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

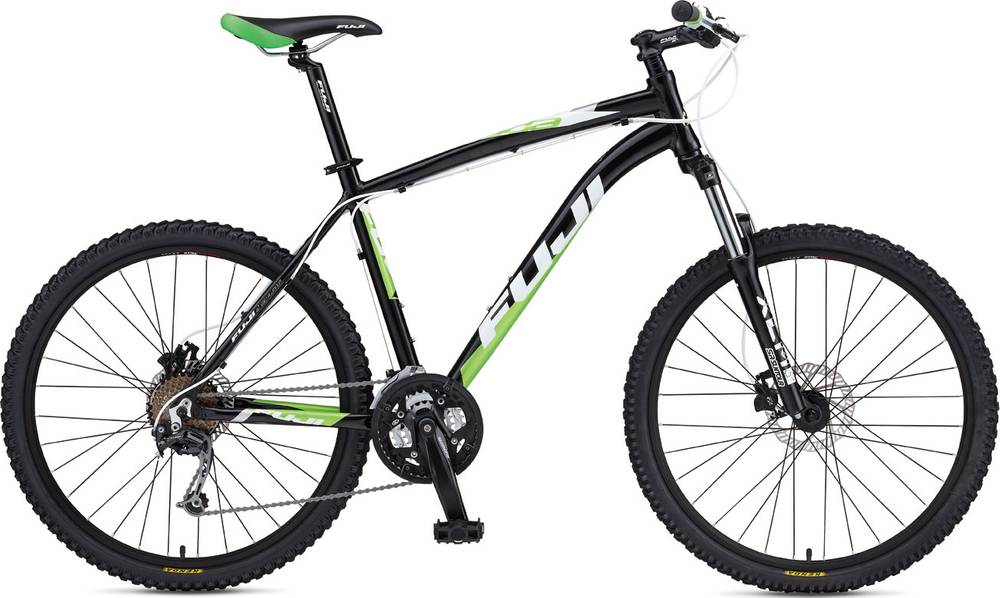

Nevada 2.0 completes the Fuji Nevada model. 241 bikes variations carry this model name so far. Take a sneak peek at all Fuji Nevada bikes models from 2012, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Fuji Nevada 2.0 2012, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
