Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 26" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Elios 1 steel w/ PowerCurve down tube, tri-shaped top tube, oversized seat tube
Suspension Fork
SR Suntour SF13-M3020 w/ 75mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney, TX35, 7-speed
Front Derailleur
Shimano Tourney, TZ31, 34.9mm
Shift Levers
Shimano EF40 EZ Fire, 7-speed
Cassette
SunRun freewheel, 13-34T, 7-speed
Crank
Vuelta alloy, 48/38/28T w/ chainguard
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
Fixed Star, FG-50, 7-speed
Pedals
Plastic platform
Wheels
Rims
Formula FM21 front / FM31 rear, alloy 32H hubs, Vera Terra SPM16
Tires
Vera Eos, 26" x 2.1", 30 tpi
Brakes
Brakes
Tektro alloy, linear pull
Brake Levers
Shimano EF40 2-finger brake/shifter combo
Cockpit
Stem
Fuji, melt-forged alloy, 25.4mm clamp diameter, 20° rise
Handlebar
Fuji steel rise bar, 6° degree sweep, 25.4mm diameter, 660mm wide, 30mm rise
Headset
FSA 1 1/8" caged bearings w/ 30mm spacers
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Fuji, alloy double-bolt micro-adjust, 28.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.46 mm | 1.4 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 599 mm | 609 mm | 642 mm | 665 mm | 696 mm | 717 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 83 mm | 77 mm | 77 mm | 77 mm |
| Stack | 553.2 mm | 562.6 mm | 582.3 mm | 581.4 mm | 590.8 mm | 604.9 mm |
| Reach | 358.3 mm | 365.4 mm | 397.6 mm | 414.6 mm | 441.9 mm | 457.5 mm |
| Top Tube Length | 528 mm | 538 mm | 573 mm | 593 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1019 mm | 1030 mm | 1062 mm | 1086 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 715 mm | 743 mm | 784 mm | 799 mm | 828 mm | 861 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

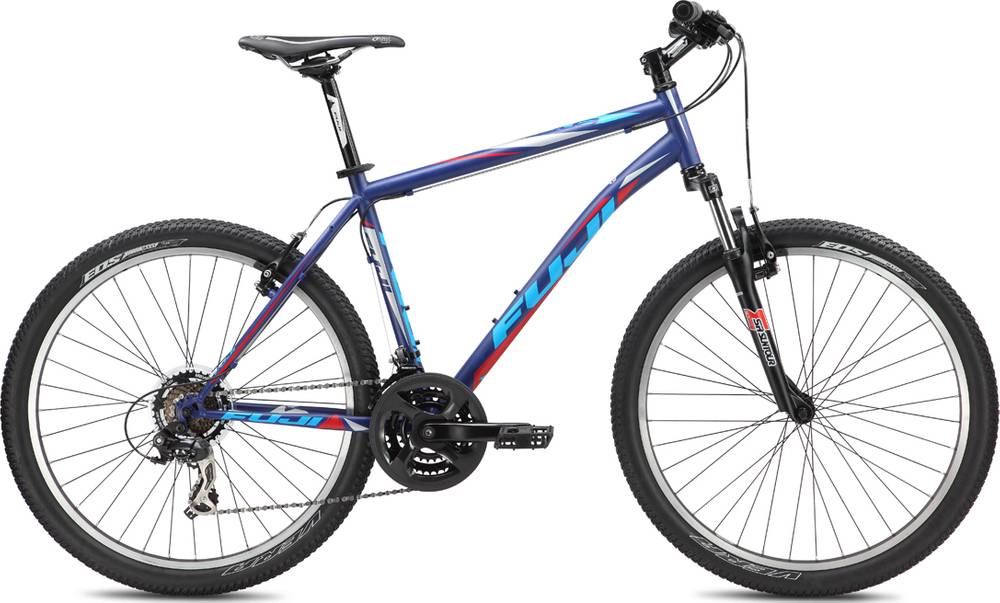

Nevada 2.1 is a Fuji Nevada model. There are 241 bikes that carry this model name. Take a sneak peek at all Fuji Nevada bikes models from 2013, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 15.33 kg (33.8 lbs), Fuji bike is much heavier than average. In other words, this model is 23.63% heavier than the average Crosscountry bike.
Overview of components
Fork
The Nevada 2.1 comes factory-installed with the SunTour fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Nevada 2.1 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Nevada 2.1 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
