Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF16-XCT-HLO-DS-26 w/ hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, 8-speed
Front Derailleur
Shimano Altus, 34.9mm
Shift Levers
Shimano EF51, EZ Fire, 8-speed
Cassette
Shimano HG31, 11-34T, 8-speed
Crank
SR Suntour XCT, alloy, 42/32/22T
Bottom Bracket
VP-BC73 , sealed cartridge bearing
Chain
KMC HV700, 8-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD16 rims 32h, Formula DC-20 front, DC-22 rear disc hubs, 14g black spokes
Tires
Vera Eos, 26" x 2.1", 30tpi
Brakes
Brakes
Tektro M-280, mechanical disc, 180mm/160mm rotors
Brake Levers
Shimano EF51, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533.4 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 744 mm | 778 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

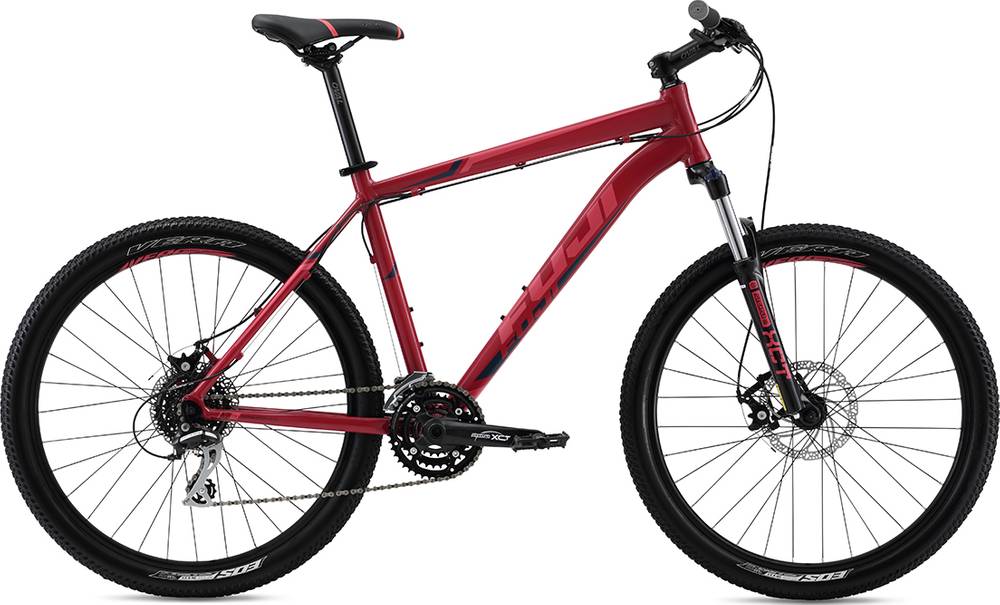

About this model
Nevada 26 1.7 is part of the Fuji Nevada model. Fuji released 241 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Nevada 26 1.7 weighs 14.51 kg (31.99 lbs) and is much heavier than the average. In conclusion, the average Crosscountry bike weighs 17.02% less than Nevada 26 1.7.
Nevada 26 1.7 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Nevada 26 1.7 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 26 1.7 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Nevada 26 1.7 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
