Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF15-XCM-RL w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 9-speed
Front Derailleur
Shimano Alvio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200, 11-34T, 9-speed
Crank
Shimano Alivio Octalink, 40/30/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X9, 9-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-20LW front / Formula DC-22LW rear disc hubs, 14g stainless black spokes
Tires
Schwalbe Smart Sam, 27.5" x 2.25", 30 tpi
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotor
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 710mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 595 mm | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 592.8 mm | 602.1 mm | 616.4 mm | 625.8 mm | 640 mm | 649.4 mm |
| Reach | 351.8 mm | 359 mm | 389.6 mm | 406.8 mm | 432.4 mm | 449.5 mm |
| Top Tube Length | 533.6 mm | 543.6 mm | 578.6 mm | 598.6 mm | 628.6 mm | 648.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330.2 mm | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1024 mm | 1035 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 748 mm | 771 mm | 801 mm | 831 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

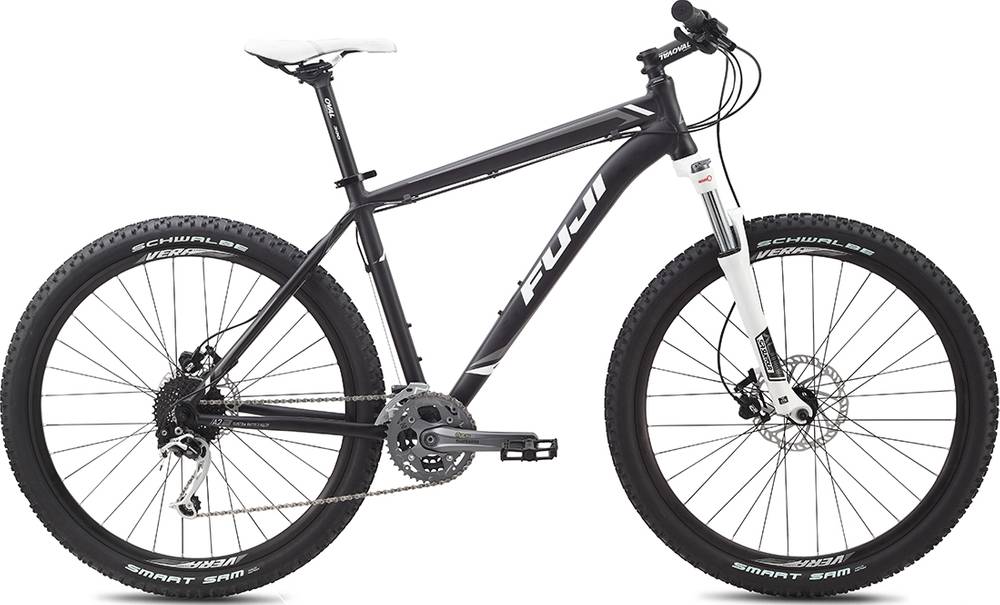

Nevada 27-5 1.3 is a Fuji Nevada model. Fuji launched 241 bikes of this model so far. Take a sneak peek at all Fuji Nevada bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Nevada 27-5 1.3 it’s weighing 14.64 kg (32.28 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 18.06% less than Nevada 27-5 1.3.
Overview of components
Fork
The Nevada 27-5 1.3 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Fuji Nevada 27-5 1.3 2015, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Nevada 27-5 1.3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
