Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF15-XCM-RL-DS-27.5 w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200-9, 11-34T, 9-speed
Crank
Shimano Alivio Octalink, 44/32/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X9, 9-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-20LW front, Formula DC-22LW rear disc hubs, 14g stainless black spokes
Tires
Schwalbe Smart Sam, 27.5" x 2.1", 50tpi
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotors
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 595 mm | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 592.8 mm | 602.1 mm | 616.4 mm | 625.8 mm | 640 mm | 649.4 mm |
| Reach | 351.8 mm | 359 mm | 389.6 mm | 406.8 mm | 432.4 mm | 449.5 mm |
| Top Tube Length | 533.6 mm | 543.6 mm | 578.6 mm | 598.6 mm | 628.6 mm | 648.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330.2 mm | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1024 mm | 1035 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 748 mm | 771 mm | 801 mm | 831 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

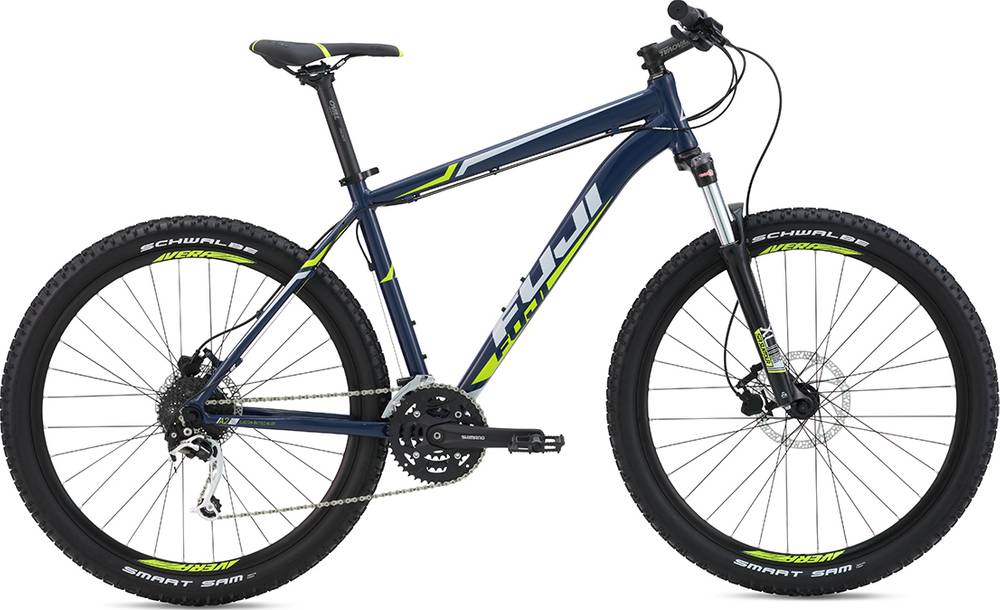

Nevada 27.5 1.3 belongs to the Fuji Nevada model. There are 241 bikes that carry this model name. You can easily view all of the Fuji Nevada bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Nevada 27.5 1.3 has a weight of 14.4 kg (31.75 lbs). In conclusion, the average Crosscountry bike weighs 16.13% less than Nevada 27.5 1.3.
Nevada 27.5 1.3 components
Fork
Fuji Nevada 27.5 1.3 2016 bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Nevada 27.5 1.3 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nevada 27.5 1.3 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
