Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF15-XCT-HLO w/ hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, 8-speed
Front Derailleur
Shimano Altus, 34.9mm
Shift Levers
Shimano EF51, EZ Fire, 8-speed
Cassette
SunRace Driven, 11-34T, 8-speed
Crank
SR Suntour XCT, alloy, 42/32/22T
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC, 8-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD18 rims 32h, Shimano DH-3D32 6V/3.0w Dynamo front / DC-22 rear hubs, 14g black spokes
Tires
Vera Eos, 27.5" x 2.2", 30 tpi
Brakes
Brakes
Mechanical disc, 180mm/160mm rotor
Brake Levers
Shimano EF51, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 640 / 680mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 595 mm | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 592.8 mm | 602.1 mm | 616.4 mm | 625.8 mm | 640 mm | 649.4 mm |
| Reach | 351.8 mm | 359 mm | 389.6 mm | 406.8 mm | 432.4 mm | 449.5 mm |
| Top Tube Length | 533.6 mm | 543.6 mm | 578.6 mm | 598.6 mm | 628.6 mm | 648.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330.2 mm | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1024 mm | 1035 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 748 mm | 771 mm | 801 mm | 831 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

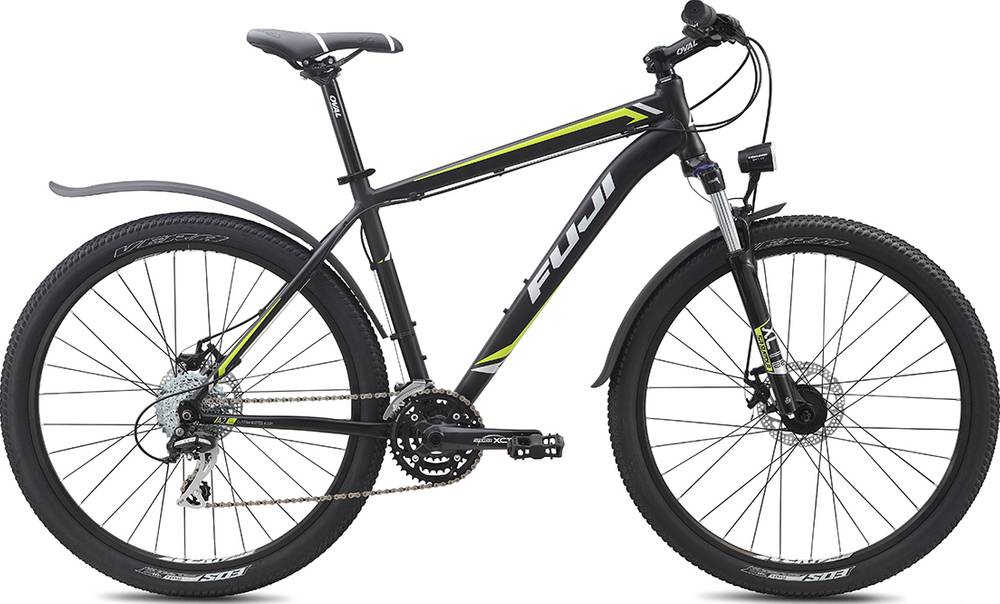

Nevada 27-5 1.7 EQP is a Fuji Nevada model. There are 241 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Nevada 27-5 1.7 EQP weighs 15.82 kg (34.88 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 27.58% lower than this one.
Nevada 27-5 1.7 EQP components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Fuji Nevada 27-5 1.7 EQP 2015, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 27-5 1.7 EQP has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
