Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF15-XCT w/ 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus, 7-speed
Front Derailleur
Shimano Tourney, 34.9mm
Shift Levers
Shimano EF41, EZ Fire, 7-speed
Cassette
SunRun freewheel, 14-34T, 7-speed
Crank
Vuelta, alloy, 42/34/24T w/ chainguard
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC, 7-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra SPD16 rims 36h, Formula DC-20 front / DC-31 rear disc hubs, 14g black spokes
Tires
Vera Eos, 27.5" x 2.2", 30 tpi
Brakes
Brakes
Mechanical disc, 160mm rotor
Brake Levers
Shimano EF41, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 640 / 680mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 595 mm | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 592.8 mm | 602.1 mm | 616.4 mm | 625.8 mm | 640 mm | 649.4 mm |
| Reach | 351.8 mm | 359 mm | 389.6 mm | 406.8 mm | 432.4 mm | 449.5 mm |
| Top Tube Length | 533.6 mm | 543.6 mm | 578.6 mm | 598.6 mm | 628.6 mm | 648.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330.2 mm | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1024 mm | 1035 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 748 mm | 771 mm | 801 mm | 831 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

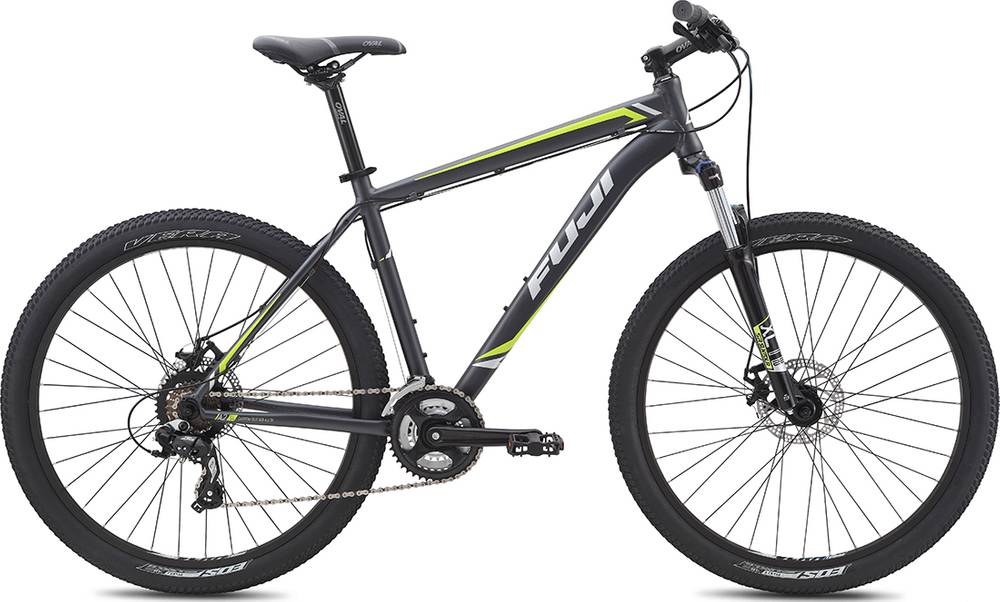

Nevada 27-5 1.9 is a Fuji Nevada model. There are 241 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Nevada 27-5 1.9 has a weight of 15.53 kg (34.24 lbs). In conclusion, the average Crosscountry bike weighs 25.24% less than Nevada 27-5 1.9.
Overview of components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Nevada 27-5 1.9 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada 27-5 1.9 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
