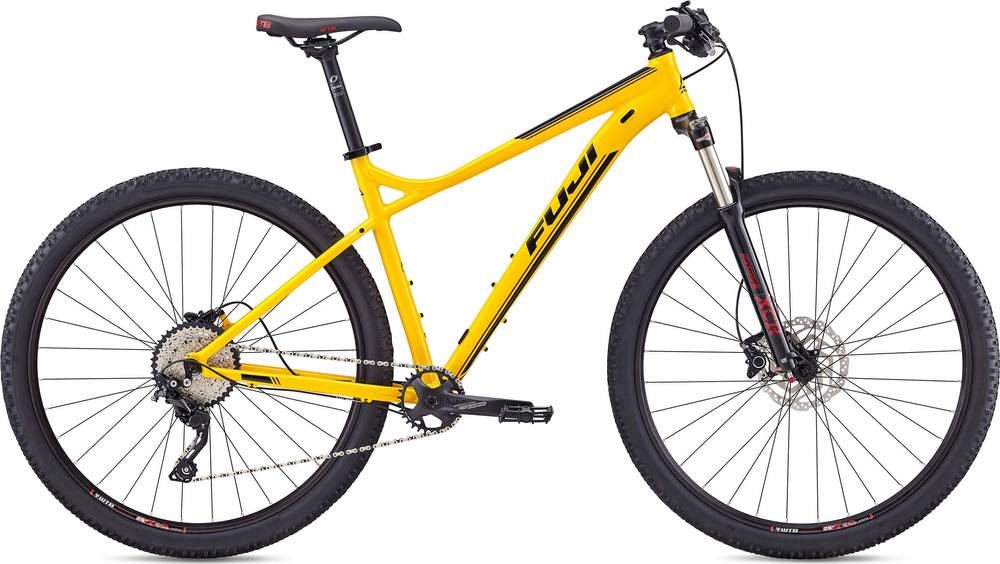

Fuji Nevada 29 1.2 2020
2020 Mountain
Estimate price |
1,099$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
168cm - 176cm
MD
174cm - 180cm
LG
178cm - 185cm
XL
173cm - 193cm
XXL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Suspension Fork
SR Suntour SF14-XCR32-AIR-RLR-DS, 100MM
Drivetrain
Rear Derailleur
Shimano Deore shadow plus
Shift Levers
Shimano Deore, Rapid Fire, 1 x 10-speed
Cassette
Shimano HG500, 11-42
Crank
FSA Gamma Pro, 30T
Bottom Bracket
FSA Mega EXO, threaded
Chain
KMC X10
Pedals
Alloy platform
Wheels
Rims
WTB SX19 rims 32H, Shimano HB-TX505 front, FH-TX505 rear hub, stainless black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi
Brakes
Brakes
Shimano MT400, 180/160MM rotors
Brake Levers
Shimano MT400
Cockpit
Stem
Oval Concepts 313, alloy, +/-7°
Handlebar
Oval Concepts flat bar, alloy, 710MM
Grips
Fuji Performance Grip Lock On
Headset
1 1/8" cartridge bearings
Seat
Saddle
WTB Volt Sport
Seatpost
Oval Concepts 300, alloy, 30.9MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.49 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 646 mm | 667 mm | 692 mm | 707 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 621.9 mm | 631.3 mm | 636 mm | 640.7 mm | 650.1 mm |
| Reach | 386.1 mm | 403.2 mm | 426.7 mm | 440.3 mm | 457.4 mm |
| Top Tube Length | 577 mm | 597 mm | 622 mm | 637 mm | 657 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 483 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1071 mm | 1092 mm | 1117 mm | 1132 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 649 mm | 694 mm | 724 mm | 755 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 174 cm | 178 cm | 173 cm | 190 cm |
| Rider Max Height | 176 cm | 180 cm | 185 cm | 193 cm | 198 cm |
About this model
Nevada 29 1.2 is part of the Fuji Nevada model. Fuji released 241 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Fuji Nevada 27.5 1.9 2020 has a starting price of 499$. Fuji Nevada 29 1.1 2020 on the other hand is the most expensive at 1199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1099$. In conclusion, this bike price is 73.34% smaller than the price of the average Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Nevada 29 1.2 has a weight of 13.8 kg (30.42 lbs). To sum up, it’s 11.29% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Fuji Nevada 29 1.2 2020 bike is equipped with the SunTour XCR 32 Air fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Nevada 29 1.2 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada 29 1.2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 168 cm – 198 cm (5.51 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
