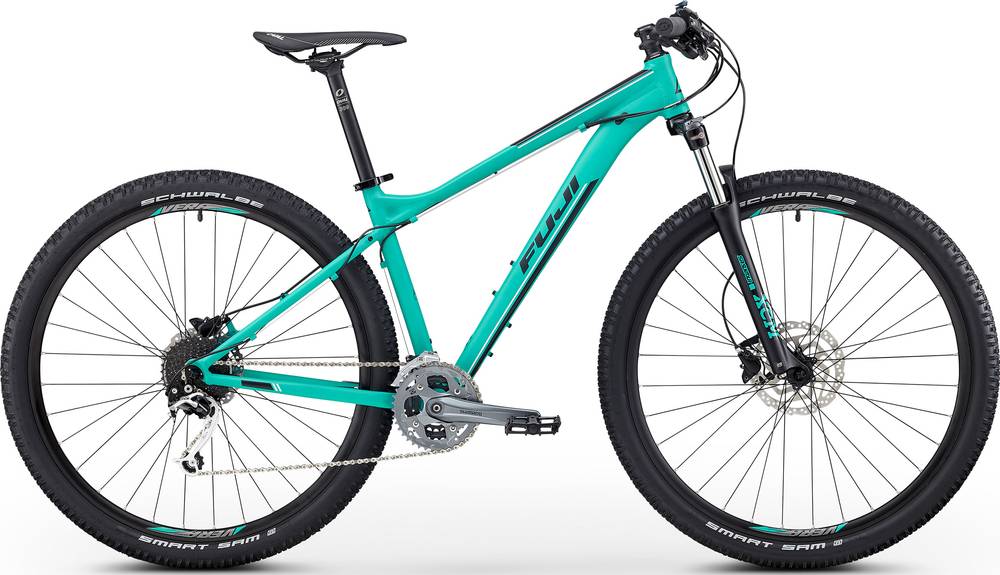

Fuji Nevada 29 1.3 2018
2018 Mountain
Estimate price |
899$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, Fuji A1-SL alloy rear triangle, post disc mount, cold-forged dropout and replaceable hanger
Suspension Fork
SR Suntour SF15-XCM-RL-DS-29 w/ remote lockout, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200-9, 11-36T, 9-speed
Crank
Shimano Alivio, 40/30/22T
Bottom Bracket
Shimano Octalink
Chain
KMC X9, 9-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Shimano TX-505 front, Shimano TX-505 rear disc hubs, 14g stainless black spokes
Tires
Schwalbe Smart Sam, 29" x 2.1", 50tpi
Brakes
Brakes
Shimano M315, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M315, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts flat bar, 6061 alloy, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 620, ergo shape, single lock on, single density Kraton
Headset
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 238, steel rail
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.49 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 646 mm | 667 mm | 692 mm | 707 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 621.9 mm | 631.3 mm | 636 mm | 640.7 mm | 650.1 mm |
| Reach | 386.1 mm | 403.2 mm | 426.7 mm | 440.3 mm | 457.4 mm |
| Top Tube Length | 577 mm | 597 mm | 622 mm | 637 mm | 657 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 483 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1071 mm | 1092 mm | 1117 mm | 1132 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 649 mm | 694 mm | 724 mm | 755 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Nevada 29 1.3 belongs to the Fuji Nevada model. Fuji released 241 bikes variations of this model so far. Take a sneak peek at all Fuji Nevada bikes models from 2018, by clicking here.
Model range prices
Fuji Nevada 27.5 1.9 2018 is the cheapest bike model and costs 499$. Fuji Nevada 29 1.1 2018 is the most expensive one and costs 1099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 899$. Doing a quick comparison, we notice that Nevada 29 1.3 price is 111.9% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Fuji Nevada 29 1.3 it’s weighing 14.5 kg (31.97 lbs). At this weight, is much heavier than average. To sum up, it’s 16.94% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Fuji Nevada 29 1.3 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
