Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 178cm
LG
175cm - 183cm
XL
180cm - 188cm
XXL
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Suspension Fork
SR Suntour SF20-XCM-RL-DS-29, remote lockout, 100mm OR Spinner 300 RMT
Drivetrain
Rear Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 1 x 11-speed
Cassette
Sunrace, 11-50T
Crank
FSA Gamma Pro, 30T
Bottom Bracket
FSA Mega Exo, threaded
Chain
KMC X11
Pedals
Resin platform
Wheels
Rims
WTB SX19 rims 32H, Shimano HB-TX505 front, FH-TX505 rear hub, stainless black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi OR Good Year Peak Premium
Brakes
Brakes
Shimano MT200, 180/160mm rotors
Brake Levers
Shimano MT201
Cockpit
Stem
Fuji, forged aluminum, +/-6°
Handlebar
Fuji flat bar, alloy, 710mm
Grips
Fuji Performance Grip Lock On
Headset
1 1/8" sealed bearings
Seat
Saddle
WTB Volt Sport
Seatpost
Fuji, alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 669 mm | 690 mm | 715 mm | 733 mm | 752 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 615.5 mm | 625 mm | 629.5 mm | 639 mm | 648 mm |
| Reach | 408 mm | 425 mm | 449 mm | 463 mm | 479 mm |
| Top Tube Length | 595 mm | 615 mm | 640 mm | 657 mm | 676 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1117 mm | 1138 mm | 1164 mm | 1181 mm | 1201 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 785 mm | 813 mm | 838 mm | 866 mm | 890 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 175 cm | 180 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 183 cm | 188 cm | 196 cm |
About this model

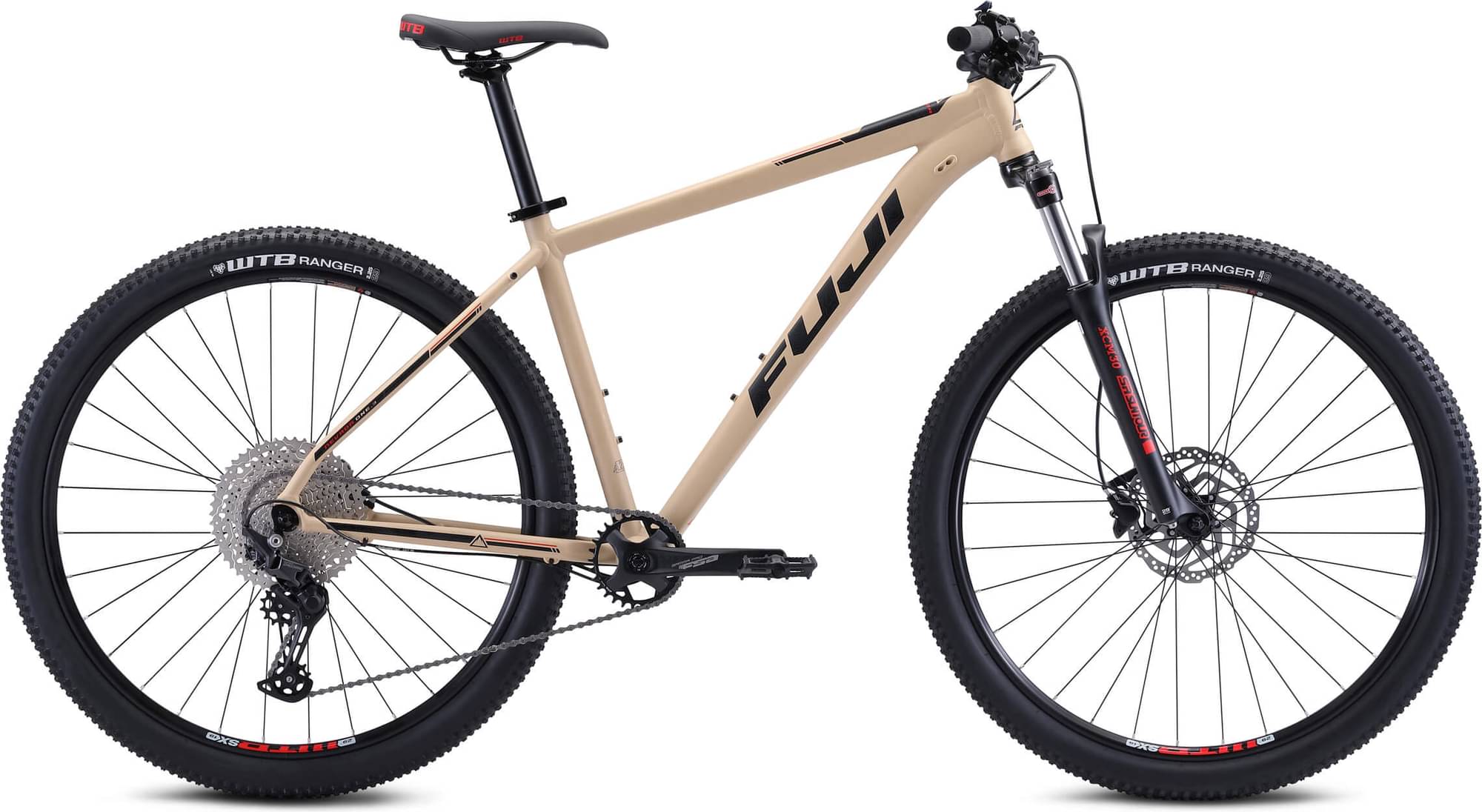

Nevada 29 1.3 completes the Fuji Nevada model. 241 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Fuji Nevada 26 1.9 V 2022 is the most affordable bike of this model and has a price of 562$. On the other hand, Fuji Nevada 29 1.0 LTD 2022, is the most expensive and costs 1167$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Fuji Nevada 29 1.3 price was 1099$. Comparing this to the average Crosscountry bike price, we see that the price is 73.34% smaller.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Nevada 29 1.3 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Nevada 29 1.3 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Fuji Nevada 29 1.3 bike has 5 sizes, in the range of 160 cm – 196 cm (5.25 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
