Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCM-HLO w/ hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio, M430 SGS, 9-speed
Front Derailleur
Shimano Altus, M370, 34.9mm
Shift Levers
Shimano Altus, M370 Rapid Fire, 9-speed
Cassette
Shimano HG20, 11-34T, 9-speed
Crank
Shimano M391, 44/32/22T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC X9, 9-speed
Pedals
Alloy platform
Wheels
Rims
Formula DC-20LW front / Formula DC-22LW rear, 32H disc hubs, Vera DPD22 rims
Tires
Hutchinson Cobra, 29" x 2.1", 33 tpi
Brakes
Brakes
Promax Decipher, hydraulic disc, 180mm/160mm rotor
Brake Levers
Promax Decipher, hydraulic disc
Cockpit
Stem
Oval M313, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy bar, 9° sweep, 31.8mm diameter, 710mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval M200 w/ steel rails
Seatpost
Oval M300, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.69 mm | 1.59 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 624 mm | 639 mm | 659 mm | 674 mm | 725 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 74 mm | 78 mm | 80 mm | 44 mm |
| Stack | 637.8 mm | 640.2 mm | 640.2 mm | 647.2 mm | 666.1 mm |
| Reach | 370.6 mm | 379.1 mm | 402.5 mm | 417.5 mm | 426.3 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482.6 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1075 mm | 1095 mm | 1110 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 779 mm | 807 mm | 829 mm | 854 mm | 887 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

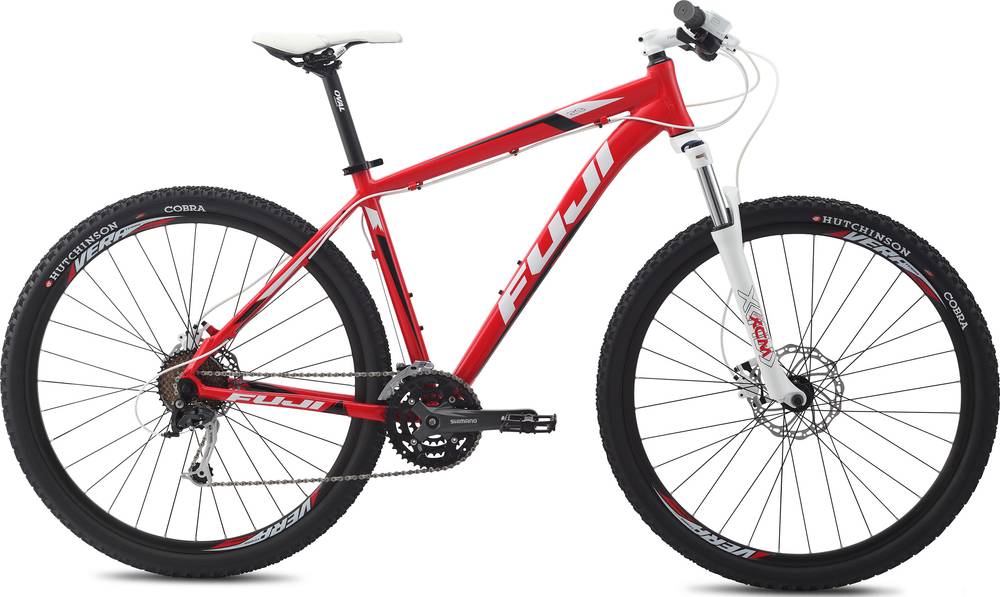

Nevada 29 1.4 is a Fuji Nevada model. 241 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.57 kg (32.12 lbs), the Nevada 29 1.4 model is much heavier than average. To sum up, it’s 17.5% heavier than the average weight of Crosscountry bikes.
Nevada 29 1.4 components
Fork
The Nevada 29 1.4 comes factory-installed with the SunTour XCM HLO fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Nevada 29 1.4 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada 29 1.4 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
