Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCM-HLO w/ hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio, M430 SGS, 9-speed
Front Derailleur
Shimano Acera, M390, 34.9mm
Shift Levers
Shimano Acera, M390 Rapid Fire, 9-speed
Cassette
Shimano HG20, 11-34T, 9-speed
Crank
Shimano Acera, M371, 44/32/22T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC X9, 9-speed
Pedals
Alloy platform
Wheels
Rims
Formula DC-20LW front / Shimano M475 rear, 32H disc hubs, Vera DPD22 rims
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Hayes Dyno Sport, hydraulic disc, 180mm/160mm rotor
Brake Levers
Hayes Dyno Sport hydraulic
Cockpit
Stem
Oval M213, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy bar, 9° sweep, 31.8mm diameter, 710mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval M200 w/ satin steel rails
Seatpost
Oval M200, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.69 mm | 1.59 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 624 mm | 639 mm | 659 mm | 674 mm | 725 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 74 mm | 78 mm | 80 mm | 44 mm |
| Stack | 637.8 mm | 640.2 mm | 640.2 mm | 647.2 mm | 666.1 mm |
| Reach | 370.6 mm | 379.1 mm | 402.5 mm | 417.5 mm | 426.3 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482.6 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1075 mm | 1095 mm | 1110 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 779 mm | 807 mm | 829 mm | 854 mm | 887 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

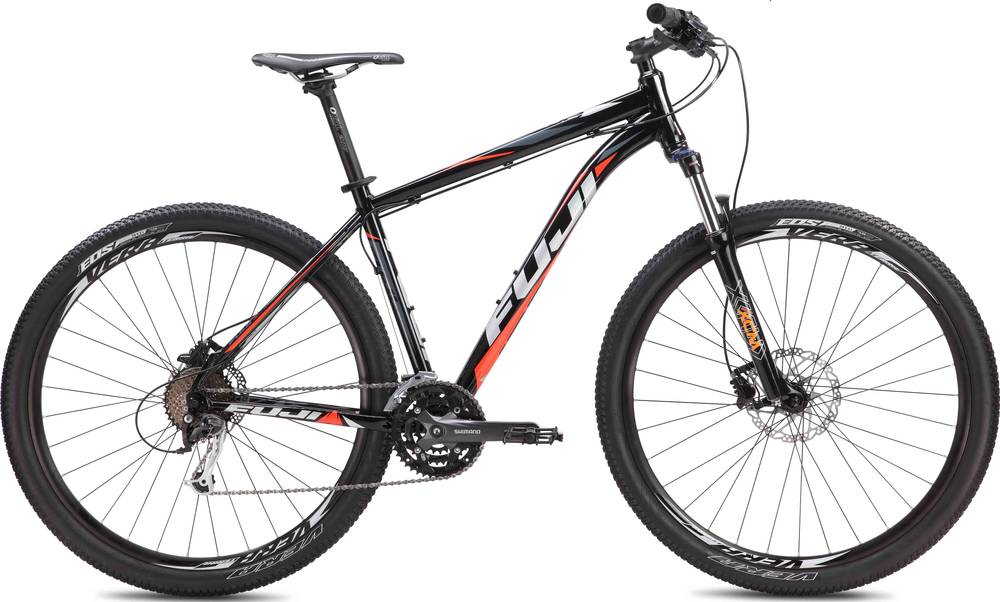

Nevada 29 1.5 D belongs to the Fuji Nevada model. 241 bikes variations carry this model name so far. You can easily view all of the Fuji Nevada bikes models from 2013, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.81 kg (32.65 lbs), the Nevada 29 1.5 D model is much heavier than average. To sum up, it’s 19.44% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Fuji Nevada 29 1.5 D 2013 bike is equipped with the SunTour XCM HLO fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Nevada 29 1.5 D are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nevada 29 1.5 D comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
