Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF14-XCT-HLO w/ hydraulic lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, 8-speed
Front Derailleur
Shimano Altus, 34.9mm
Shift Levers
Shimano Altus, Rapid Fire, 8-speed
Cassette
SunRace Driven, 11-34T, 8-speed
Crank
SR Suntour XCT, alloy, 42/32/22T
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC, 8-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD18 rims 32h, Formula DC-20 front / DC-22 rear disc hubs, 14g black spokes
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotor
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts flat bar, 6061 alloy, 31.8mm, 9° sweep, 0mm rise, 710mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.71 mm | 1.61 mm | 1.55 mm | 1.73 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 624 mm | 639 mm | 659 mm | 674 mm | 689 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 77 mm | 80 mm | 80 mm | 105 mm |
| Stack | 637.8 mm | 647.2 mm | 647.2 mm | 647.2 mm | 736.1 mm |
| Reach | 370.6 mm | 379.1 mm | 402.5 mm | 417.5 mm | 426.3 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482.6 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1075 mm | 1095 mm | 1110 mm | 1125 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 789 mm | 818 mm | 840 mm | 865 mm | 897 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

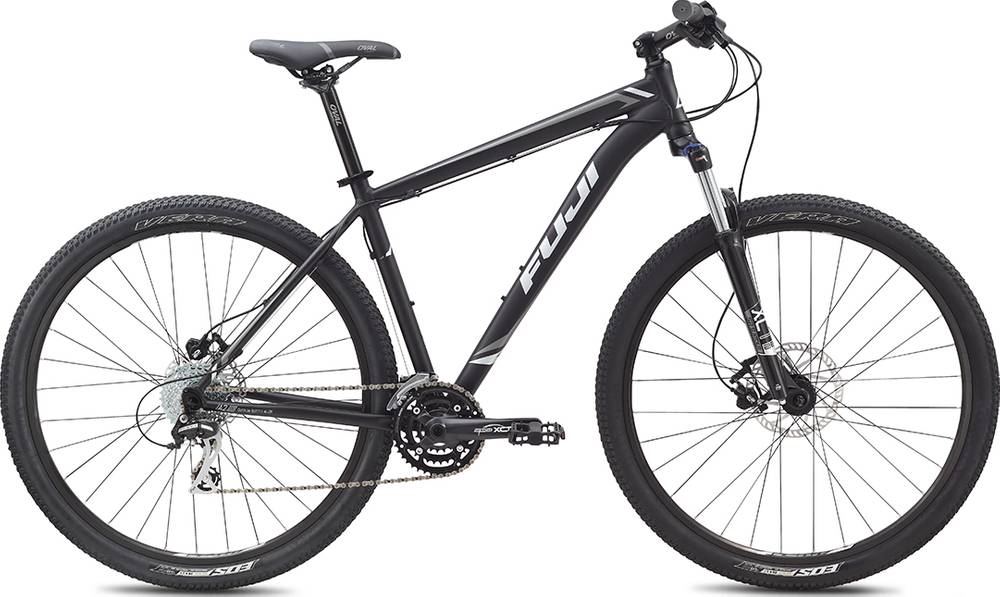

Nevada 29 1.6 is part of the Fuji Nevada model. There are 241 bikes that carry this model name. You can easily view all of the Fuji Nevada bikes models from 2015, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuji Nevada 29 1.6 it’s weighing 15.07 kg (33.22 lbs). At this weight, is much heavier than average. In other words, this model is 21.53% heavier than the average Crosscountry bike.
Nevada 29 1.6 components
Fork
Fuji Nevada 29 1.6 2015 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Fuji Nevada 29 1.6 2015, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nevada 29 1.6 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
