Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF14-XCT w/ 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus, M280, 7-speed
Front Derailleur
Shimano Tourney, TX50, 34.9mm
Shift Levers
Shimano EF40 EZ Fire, 7-speed
Cassette
SunRun freewheel, 13-34T, 7-speed
Crank
Vuelta alloy, 42/34/24T w/ chainguard
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
KMC, HV500, 7-speed
Pedals
Plastic platform
Wheels
Rims
Formula DC-20 front / DC-31 rear, 32H hubs w/ Vera Terra SPD16 rims
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Mechanical disc, 160mm rotor
Brake Levers
Shimano EF40 2-finger brake/shifter combo
Cockpit
Stem
Oval, melt-forged alloy, 31.8mm clamp diameter, 10° rise
Handlebar
Steel flat bar, 6° degree sweep, 31.8mm diameter, 680mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Oval, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.69 mm | 1.59 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 624 mm | 639 mm | 659 mm | 674 mm | mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 74 mm | 78 mm | 80 mm | mm |
| Stack | 637.8 mm | 640.2 mm | 640.2 mm | 647.2 mm | 666.1 mm |
| Reach | 370.6 mm | 379.1 mm | 402.5 mm | 417.5 mm | 426.3 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482.6 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1075 mm | 1095 mm | 1110 mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 779 mm | 807 mm | 829 mm | 854 mm | 887 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

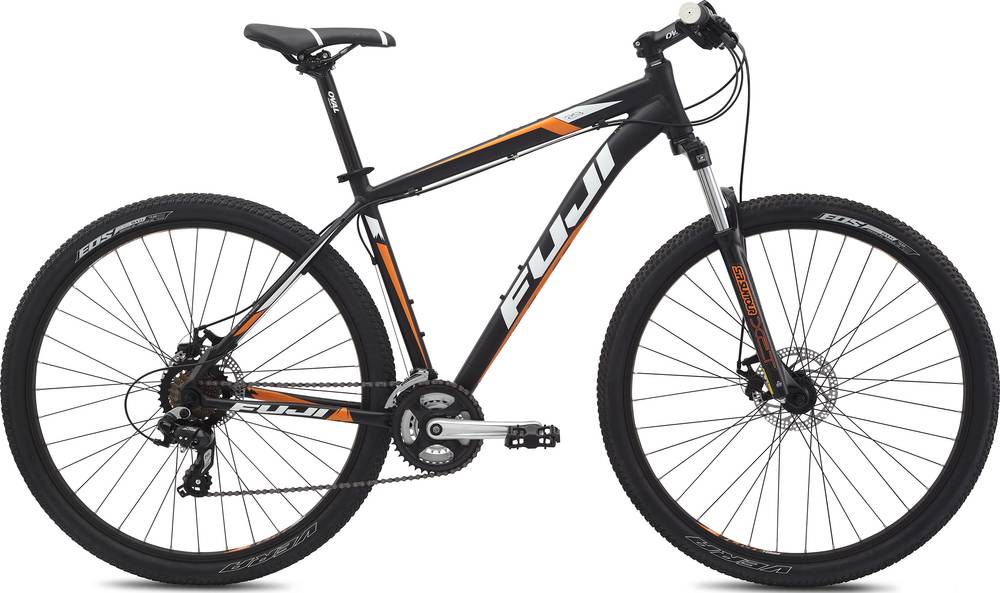

Nevada 29 1.9 belongs to the Fuji Nevada model. 241 bikes variations carry this model name so far. Take a sneak peek at all Fuji Nevada bikes models from 2014, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Nevada 29 1.9 has a weight of 15.56 kg (34.3 lbs). In other words, this model is 25.48% heavier than the average Crosscountry bike.
Nevada 29 1.9 components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Nevada 29 1.9 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada 29 1.9 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
