Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
168cm - 176cm
MD
174cm - 180cm
LG
178cm - 185cm
XL
173cm - 193cm
XXL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Suspension Fork
SR Suntour SF19-XCE 29, 100mm
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41, EZ Fire, 3 x 7-speed
Cassette
Shimano TZ500 freewheel, 14-34T
Crank
Shimano Tourney, 42/34/24T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC HV500
Pedals
Resin platform
Wheels
Rims
WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear disc hubs, black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi
Brakes
Brakes
Tektro M280, mechanical disc, 160mm rotors
Brake Levers
Shimano EF41
Cockpit
Stem
Fuji, forged aluminum, +/-6°
Handlebar
Fuji flat bar, alloy, 710mm
Grips
Fuji Performance Grip
Headset
1 1/8" sealed bearings
Seat
Saddle
Fuji Performance Saddle
Seatpost
Fuji, alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.49 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 646 mm | 667 mm | 692 mm | 707 mm | 727 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 621.9 mm | 631.3 mm | 636 mm | 640.7 mm | 650.1 mm |
| Reach | 386.1 mm | 403.2 mm | 426.7 mm | 440.3 mm | 457.4 mm |
| Top Tube Length | 577 mm | 597 mm | 622 mm | 637 mm | 657 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 483 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1071 mm | 1092 mm | 1117 mm | 1132 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 649 mm | 694 mm | 724 mm | 755 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 174 cm | 178 cm | 173 cm | 190 cm |
| Rider Max Height | 176 cm | 180 cm | 185 cm | 193 cm | 198 cm |
Model Overview

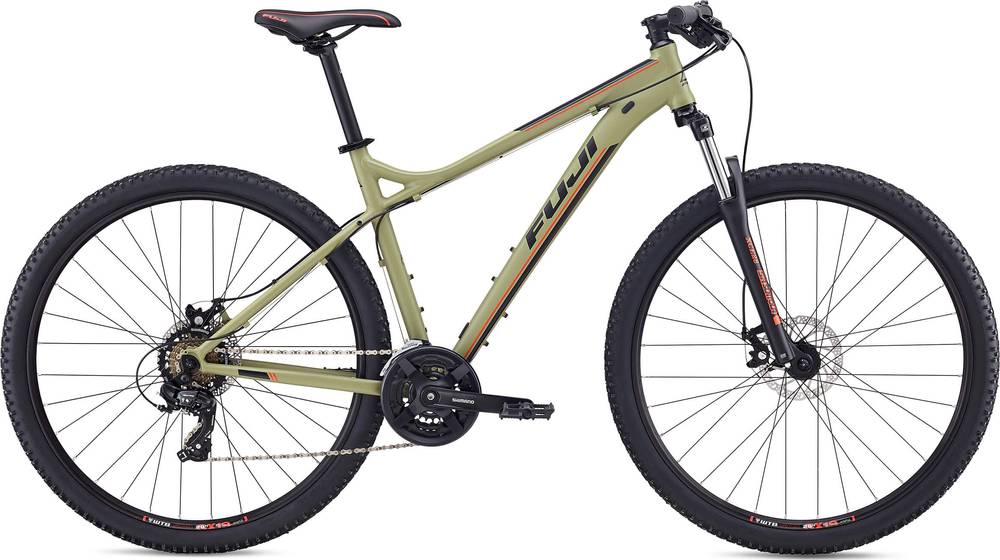

Nevada 29 1.9 is a Fuji Nevada model. 241 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Fuji Nevada 27.5 1.9 2020 is the most affordable bike of this model and has a price of 499$. On the other hand, Fuji Nevada 29 1.1 2020, is the most expensive and costs 1199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Fuji Nevada 29 1.9 price was 499$. If we compare this with the average Crosscountry bike cost we notice that the price is 281.76% lower.
Overview of components
Fork
Fuji Nevada 29 1.9 2020 bike is equipped with the SunTour fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Fuji Nevada 29 1.9 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 29 1.9 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 168 cm – 198 cm (5.51 ft – 6.5 ft). In short, you can easily find one that suits you.
