Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF13-XCT w/ 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney, TX35, 7-speed
Front Derailleur
Shimano Tourney, TX50, 34.9mm
Shift Levers
Shimano EF40 EZ Fire, 7-speed
Cassette
Shimano Tourney TZ31 freewheel, 14-34T, 7-speed
Crank
Shimano M131, 42/32/24T
Bottom Bracket
FSA square taper w/ sealed cartridge bearing
Chain
Fixed Star, FG-50, 7-speed
Pedals
Plastic platform
Wheels
Rims
Formula DC-20 front / DC-31 rear, 36H hubs w/ Vera Terra SPD22
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Mechanical disc, 160mm rotor
Brake Levers
Shimano EF40 2-finger brake/shifter combo
Cockpit
Stem
Fuji, melt-forged alloy, 25.4mm clamp diameter, 20° rise
Handlebar
Fuji steel rise bar, 6° degree sweep, 25.4mm diameter, 660mm wide, 30mm rise
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Mountain w/ satin steel rails
Seatpost
Fuji, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.69 mm | 1.59 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 624 mm | 639 mm | 659 mm | 674 mm | mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 74 mm | 78 mm | 80 mm | mm |
| Stack | 637.8 mm | 640.2 mm | 640.2 mm | 647.2 mm | 666.1 mm |
| Reach | 370.6 mm | 379.1 mm | 402.5 mm | 417.5 mm | 426.3 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482.6 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1075 mm | 1095 mm | 1110 mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 779 mm | 807 mm | 829 mm | 854 mm | 887 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

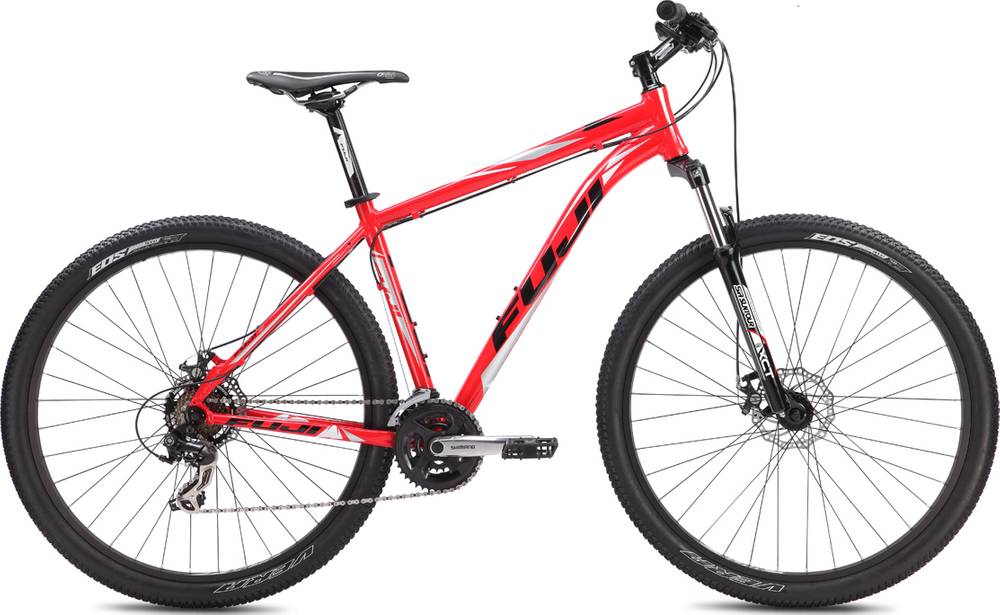

Nevada 29 1.9 D is part of the Fuji Nevada model. Fuji released 241 bikes variations of this model so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Nevada 29 1.9 D weighs 15.25 kg (33.62 lbs) and is much heavier than the average. To sum up, it’s 22.98% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Nevada 29 1.9 D bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 29 1.9 D has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
