Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Travel Front 80mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Elios 1 steel
Suspension Fork
Zoom CH-520 w/ 80mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney, 7-speed
Front Derailleur
Shimano Tourney, 31.8mm
Shift Levers
Shimano EF41, EZ Fire, 7-speed
Cassette
SunRun freewheel, 14-34T, 7-speed
Crank
Vuelta, alloy, 42/34/24T w/ chainguard
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC, 7-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra SPM16 rims 36h, Formula FM21 front / FM31 rear alloy hubs, 14G black spokes
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Alloy linear pull
Brake Levers
Shimano EF41, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, melt-forged alloy, 25.4mm, 20° rise
Handlebar
Steel rise bar, 25.4mm, 6° degree sweep, 30mm rise, 640 / 660mm wide
Headset
FSA 1 1/8" caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.69 mm | 1.6 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 613 mm | 628 mm | 648 mm | 663 mm | 677 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 625.8 mm | 635.2 mm | 635.2 mm | 635.2 mm | 654.1 mm |
| Reach | 364.9 mm | 376.6 mm | 396.6 mm | 411.6 mm | 419.9 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 115 mm | 115 mm | 115 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1049 mm | 1063 mm | 1083 mm | 1098 mm | 1113 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 783 mm | 812 mm | 836 mm | 860 mm | 892 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

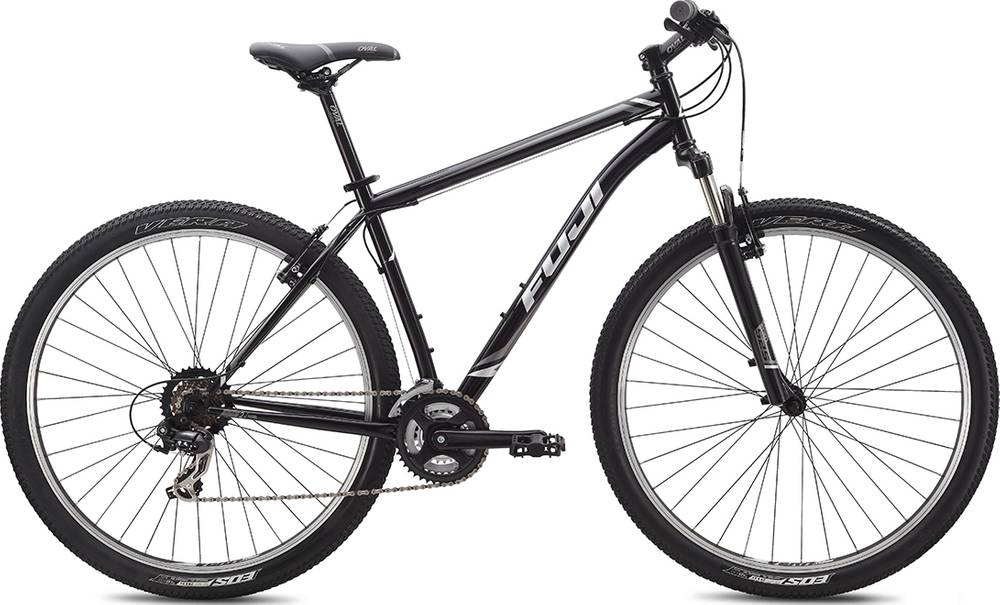

Nevada 29 2.1 V-Brake belongs to the Fuji Nevada model. There are 241 bikes that carry this model name. Take a sneak peek at all Fuji Nevada bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 16.3 kg (35.94 lbs), the Nevada 29 2.1 V-Brake model is much heavier than average. To sum up, it’s 31.45% heavier than the average weight of Crosscountry bikes.
Nevada 29 2.1 V-Brake components
Wheels size
The wheels on Nevada 29 2.1 V-Brake are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 29 2.1 V-Brake has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
