Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW Fuji Altair 1 aluminum with PowerCurve down tube, Tri shaped top tube, Oversized seat tube and integrated head tube, double water bottle mounts
Suspension Fork
SR Suntour XCT-MLO w/Mechanical LO & 80mm Travel
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Shimano FD-C050, 34.9mm
Shift Levers
Shimano ST-EF50 EZ Fire brake/shifter, 24-speed
Cassette
Shimano HG-30, 11-34T 8-speed
Crank
Shimano FC-M191, 24/34/42T with Chainguard
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC Z-72
Pedals
Wellgo ATB
Wheels
Front Hub
Formula DC-20 Oversized Disc Al, 36H, QR
Rear Hub
Formula DC-22 Oversized Disc Al cassette, 36H, QR
Rims
Jalco AX-430 Double Wall Aluminum
Spokes
14G Stainless Steel
Tires
Kenda K-837F/K-848R ATB, 26 x 2.1"
Brakes
Brakes
NEW Tektro Novela Mechanical Disc w/160mm rotor
Brake Levers
Shimano ST-EF50 Forged Alloy
Cockpit
Stem
Fuji Forged Aluminum w/removable faceplate
Handlebar
Fuji Riser 20 aluminum
Headset
V.P. 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
Fuji Race MTB
Seatpost
Fuji Aluminum micro adjust 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 596 mm | 606 mm | 642 mm | 662 mm | 693 mm | 713 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 533 mm | 543 mm | 578 mm | 598 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1016 mm | 1027 mm | 1062 mm | 1083 mm | 1113 mm | 1134 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 711 mm | 741 mm | 766 mm | 793 mm | 821 mm | 851 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

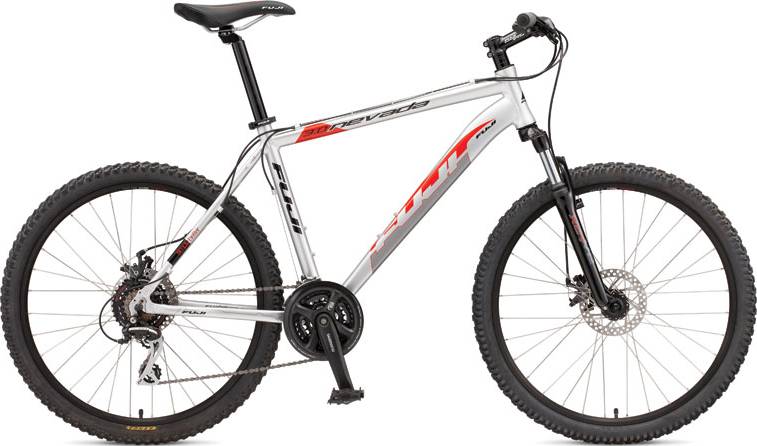

NEVADA 3.0-EURO is part of the Fuji Nevada model. Fuji launched 241 bikes of this model so far. Take a sneak peek at all Fuji Nevada bikes models from 2010, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.58 kg (32.14 lbs), the NEVADA 3.0-EURO model is much heavier than average. To sum up, it’s 17.58% heavier than the average weight of Crosscountry bikes.
NEVADA 3.0-EURO components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The NEVADA 3.0-EURO 2010 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji NEVADA 3.0-EURO is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
