Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A1-SL alloy w/ PowerCurve down tube, hydroformed top tube, oversized seat tube and semi-integrated head tube, double water bottle mounts
Suspension Fork
SR Suntour XCT, 80mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera SGS, 8-speed
Front Derailleur
Shimano TX-50, 34.9mm
Shift Levers
Shimano EZ Fire, 24-speed
Cassette
Shimano HG31, 11-34T 8-speed
Crank
Shimano M131, 24/34/42T
Bottom Bracket
Semi cartridge bearing square taper
Chain
KMC Z-72, 8-speed
Pedals
FPD w/ Boron axle
Wheels
Rims
Fuji mountain sealed 32H hubs, Jalco AX430 alloy rims
Tires
Hutchinson Scorpion 26x2.0 or Kenda K-837F/K-848R ATB, 26x2.1"
Brakes
Brakes
Tektro 837AL linear pull
Brake Levers
Tektro RS360
Cockpit
Stem
Fuji forged alloy w/ removable faceplate
Handlebar
Fuji steel riser bar, 6° sweep
Headset
Fuji custom 1 1/8" semi-integrated, 30mm spacers
Seat
Saddle
Fuji sport mountain w/ steel rails
Seatpost
Fuji alloy micro-adjust, 31.6x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Top Tube Length | 533 mm | 543 mm | 578 mm | 598 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1017 mm | 1027 mm | 1063 mm | 1083 mm | 1114 mm | 1134 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 715 mm | 743 mm | 772 mm | 802 mm | 832 mm | 865 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

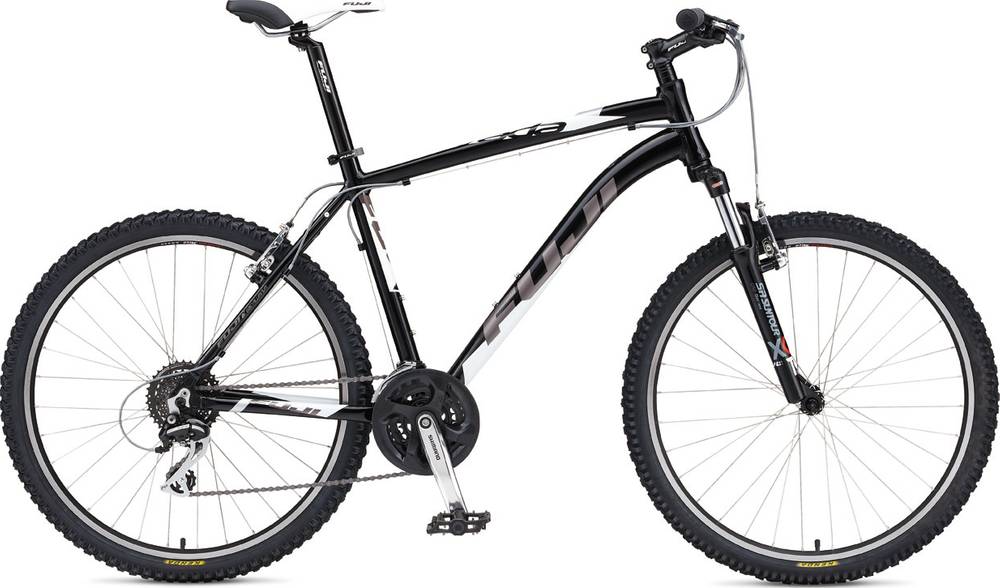

Nevada 4.0 INTL is a Fuji Nevada model. 241 bikes variations carry this model name so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Nevada 4.0 INTL components
Fork
The Nevada 4.0 INTL comes factory-installed with the SunTour XCT fork. This has a travel range of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Nevada 4.0 INTL are the 26″ aluminum type. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nevada 4.0 INTL comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
