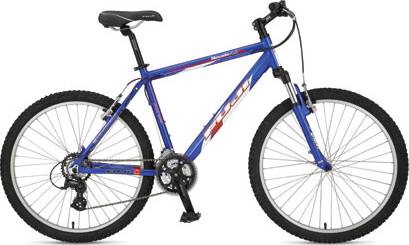

Fuji Nevada 4.0 (US / Step-over) 2008
2008 Mountain
Weight | 14.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 50mm -
Fork RST
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 1 Aluminum with PowerDiamond down tube, down tube gusset, double water bottle mounts
Suspension Fork
RST Omni 191-T8 w/Preload adjust, 50mm travel
Drivetrain
Rear Derailleur
NEW Shimano Altus
Front Derailleur
Shimano FD-C050, 31.8mm
Shift Levers
MicrShift TS50-7 Trigger shifter, 21-speed
Cassette
Sunrace MFM-4S7CV, 13-34T 7-speed
Crank
SR Suntour XCCT-202 Al, 24/34/42T with chainguard
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC UG-51
Pedals
Wellgo ATB
Wheels
Front Hub
Fuji oversized sealed Al, 36H w/QR
Rear Hub
Fuji oversized sealed Al, 36H w/QR
Rims
Jalco XC-168 Al w/ Ground sidewall
Spokes
14G Stainless Steel
Tires
Fuji ATB, 26 x 2.0"
Brakes
Brakes
ProMax PAV-711 Aluminum linear pull
Brake Levers
ProMax PAL-86 Forged Alloy
Cockpit
Stem
Fuji forged Aluminum w/removable faceplate
Handlebar
Fuji Alloy ATB riser 20mm
Headset
V.P. A-71 Aheadset threadless w/30mm spacers
Seat
Saddle
Fuji MTB
Seatpost
Fuji Aluminum micro adjust 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" | 19" | 20.5" | 22" |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 587 mm | 592 mm | 607 mm | 623 mm | 643 mm | 659 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 523 mm | 528 mm | 543 mm | 558 mm | 578 mm | 593 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 483 mm | 521 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm | 140 mm | 150 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1012 mm | 1017 mm | 1033 mm | 1049 mm | 1069 mm | 1084 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 712 mm | 737 mm | 765 mm | 796 mm | 814 mm | 837 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview
Nevada 4.0 (US / Step-over) is a Fuji Nevada model. 241 bikes variations carry this model name so far. You can easily view all of the Fuji Nevada bikes models from 2008, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Fuji Nevada 4.0 (US / Step-over) it’s weighing 14.33 kg (31.59 lbs). At this weight, is much heavier than average. To sum up, it’s 15.56% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The Nevada 4.0 (US / Step-over) comes factory-installed with the RST fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Fuji Nevada 4.0 (US / Step-over) 2008, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada 4.0 (US / Step-over) has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
