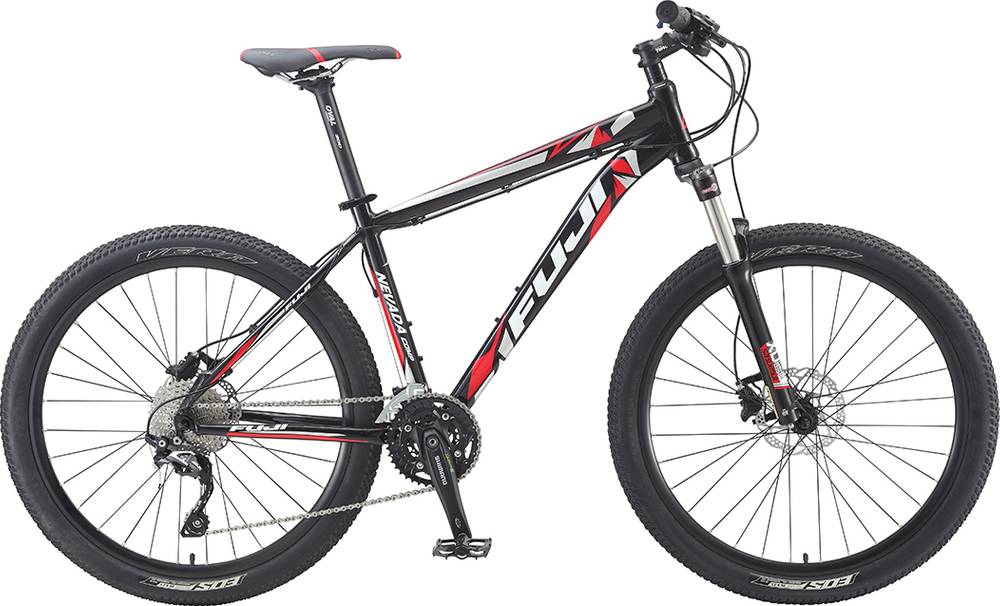

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF14-XCR-RL w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX shadow, 9-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore Octalink, 40/30/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Shimano RM33 front / Shimano RM33 rear Center Lock disc hubs, 14G stainless black spokes
Tires
Vera Eos, 26" x 2.1", 30 tpi
Brakes
Brakes
Shimano M396, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M396, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 640 / 680mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 400 w/ CrMo rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.61 mm | 1.51 mm | 1.47 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 609 mm | 644 mm | 665 mm | 695 mm | 716 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 577.2 mm | 586.6 mm | 596 mm | 605.4 mm | 614.8 mm | 628.9 mm |
| Reach | 356.3 mm | 363.5 mm | 395.6 mm | 412.7 mm | 439.8 mm | 455.5 mm |
| Top Tube Length | 533.4 mm | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1018 mm | 1029 mm | 1064 mm | 1085 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 744 mm | 778 mm | 809 mm | 831 mm | 862 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model
Nevada Comp 1.3 is a Fuji Nevada model. 241 bikes variations carry this model name so far. Take a sneak peek at all Fuji Nevada bikes models from 2015, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Nevada Comp 1.3 components
Fork
The SunTour XCR is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Nevada Comp 1.3 2015 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nevada Comp 1.3 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
