Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Compact Altair 1 Aluminum with double water bottle mounts
Suspension Fork
Fuji 1 1/8" Custom Butted, Tapered Aluminum Aero Road
Drivetrain
Rear Derailleur
Shimano Sora GS
Front Derailleur
Shimano Sora, 31.8mm for triple
Shift Levers
Shimano Sora shifter/brake, 24-speed Flight Deck compatible
Cassette
SunRace, 12-24T 8-speed
Crank
Fuji Forged Aluminum Road 30/42/52T Chainring
Bottom Bracket
Fuji Square Tapper w/Sealed cartridge bearing
Chain
Shimano HG-50
Pedals
Wellgo Road w/clips and straps
Wheels
Front Hub
Fuji Alloy Road, 32H
Rear Hub
Fuji Alloy Cassette Road, 8-speed, 32H
Rims
Alex R-500 Double Wall Aluminum, 32H
Spokes
Stainless, 14g
Tires
Kenda, 700 X 25c
Brakes
Brakes
ProMax Dual Pivot Forged Road
Brake Levers
Tektro Cross Top Mount
Cockpit
Stem
Fuji Adjustable Road Aluminum, Removable Clamp
Handlebar
Fuji Alloy Road
Headset
Fuji 1 1/8" Sealed
Seat
Saddle
Fuji Road Sport Anatomical Saddle
Seatpost
Fuji Alloy Micro Adjust, 250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 578 mm | 578 mm | 585 mm | 613 mm | 639 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 517 mm | 529 mm | 554 mm | 587 mm | 612 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73.5 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 126 mm | 156 mm | 171 mm | 197 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 991 mm | 991 mm | 998 mm | 1026 mm | 1052 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 704 mm | 744 mm | 788 mm | 823 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

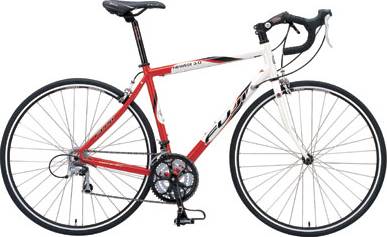

Newest 3.0 belongs to the Fuji Newest model. Fuji released 46 bikes variations of this model so far. You can get a glimpse at all models from 2006, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Road bikes
If you want to purchase a solid General Road bike, it is important to know that the average cost is 1915$. However, you could also get a good General Road bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for General Road bikes
On a deeper look, we notice that the average weight of a General Road bike is 9 kg (19.84 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Newest 3.0 weighs 11.2 kg (24.69 lbs) and is much heavier than the average. In conclusion, the average General Road bike weighs 24.44% less than Newest 3.0.
Newest 3.0 components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the Newest 3.0 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Newest 3.0 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
