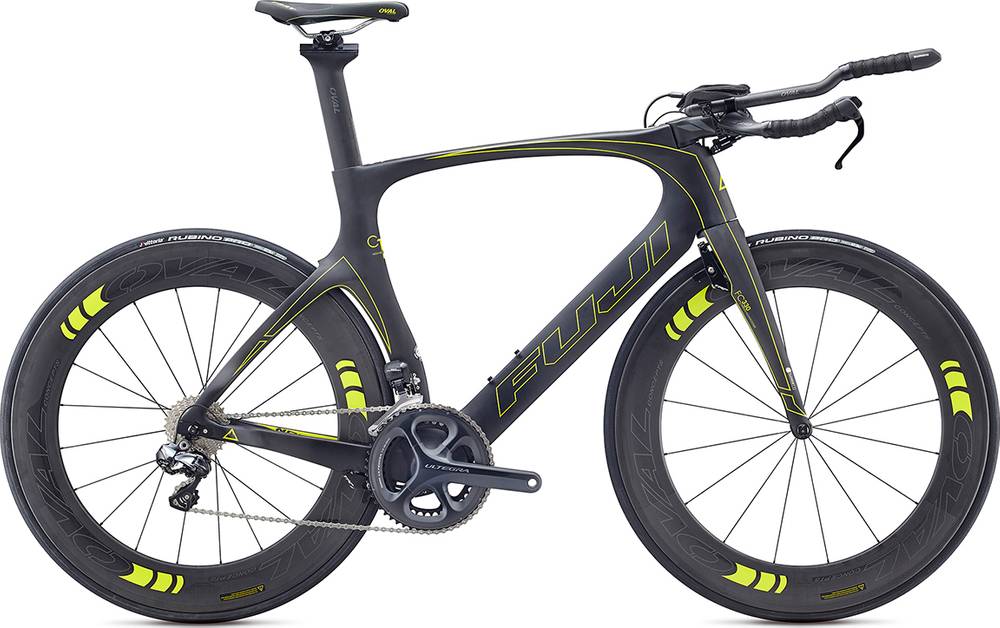

Fuji Norcom Straight 1.3 2017
2017 Road
Estimate price |
5,969$
Weight | 8.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus aero carbon tubing, integrated seat clamp, integrated head tube, water bottle mount, aero stays w/ chainstay-mounted brake, vertical dropout w/ wheel-position adjustment
Suspension Fork
FC-330 carbon aero monocoque w/ 1 1/8" carbon steerer, integrated airfoil brakes
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, 11-speed
Front Derailleur
Shimano Ultegra Di2, braze-on mount
Shift Levers
Shimano Ultegra Di2 6871 bar-end TT, 11-speed
Cassette
Shimano Ultegra, 11-28T, 11-speed
Crank
Shimano Ultegra, 53/39T
Bottom Bracket
Shimano, press fit BB86
Chain
KMC X11SL, 11-speed
Pedals
N/A
Wheels
Rims
Oval Concepts 980, 700c 16/20H aero carbon rims
Tires
Vittoria Rubino Pro, 700 x 23, 150 tpi, folding
Brakes
Brakes
TRP aero TTV
Brake Levers
Shimano Ultegra TT/Tri Di2 6871
Cockpit
Stem
Oval Concepts 760 Aero, forged 7050 stem body, aero faceplate cover, +/-8°
Handlebar
Oval Concepts 950, carbon base bar w/ 950 S-bend carbon extensions
Headset
FSA, 1 1/8" press fit top, integrated bottom bearing
Seat
Saddle
Oval Concepts 700T Tri, Dual Zone with synthetic cover, cromo rail
Seatpost
Oval Concepts, aero carbon, multi-position
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.21 mm | 1.2 mm | 1.24 mm | 1.26 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 590 mm | 621 mm | 635 mm | 653 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58.8 mm | 58.8 mm | 58.8 mm | 58.8 mm | 58.8 mm |
| Stack | 493 mm | 498 mm | 508 mm | 545 mm | 570 mm |
| Reach | 396 mm | 410 mm | 425 mm | 440 mm | 454 mm |
| Top Tube Length | 500 mm | 515 mm | 532 mm | 555 mm | 572 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 473 mm | 482 mm | 488 mm | 522 mm | 539 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 140 mm | 164 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 965 mm | 980 mm | 1011 mm | 1025 mm | 1044 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 775 mm | 783 mm | 790 mm | 826 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview
Norcom Straight 1.3 is a Fuji Norcom model. Fuji launched 39 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Fuji Norcom Straight 2.3 2017 is the most economical model, with a starting price of 2509$. Fuji Norcom Straight 1.1 2017 on the other hand costs 7399$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Fuji released this model in 2017, its price was 5969$. In conclusion, this bike price is 42.9% more expensive than the price of the average Triathlon bike.
Average weight for Triathlon bikes
Triathlon bikes have an average weight of 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.94 kg (19.71 lbs), the Norcom Straight 1.3 model is slightly heavier than average. To sum up, it’s 0.45% heavier than the average weight of Triathlon bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Norcom Straight 1.3 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Norcom Straight 1.3 has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Norcom Straight 1.3 comes in 5 sizes, that range from 162 cm – 199 cm (5.31 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
