Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy, custom-butted, semi-integrated tapered headset w/ 1.5" lower bearing, hydroformed top and down tube, smooth welds, 68mm BB shell
Suspension Fork
Manitou Marvel TS Air w/ tapered alloy steerer, lockout, 120mm travel
Rear Shock
Manitou Radium Expert w/ lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, M781 SGS Shadow, 10°€speed
Front Derailleur
Shimano Deore, M591, 34.9mm
Shift Levers
Shimano Deore, M591 Rapid Fire, 10-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano M522, Octalink, 42/32/24T
Bottom Bracket
SShimano ES25 Octalink
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Formula DC-73 front / DC-30 rear, 32H alloy disc hubs, Vera Terra DPD22 rims
Tires
Hutchinson Scorpion, 26" x 2.0", 33 tpi
Brakes
Brakes
Promax Decipher, hydraulic disc, 180mm/160mm rotor
Brake Levers
Promax Decipher hydraulic disc
Cockpit
Stem
Oval M213, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M200, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M200 w/ satin steel rails
Seatpost
Oval M200, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.45 mm | 1.37 mm | 1.3 mm | 1.22 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Stack | 579.9 mm | 579.9 mm | 579.9 mm | 579.9 mm | 579.9 mm |
| Reach | 363.1 mm | 399.5 mm | 424.5 mm | 445.5 mm | 474.5 mm |
| Top Tube Length | 546.6 mm | 583 mm | 608 mm | 628 mm | 658 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1047 mm | 1083 mm | 1108 mm | 1128 mm | 1158 mm |
| Standover Height | 779 mm | 790 mm | 790 mm | 786 mm | 792 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

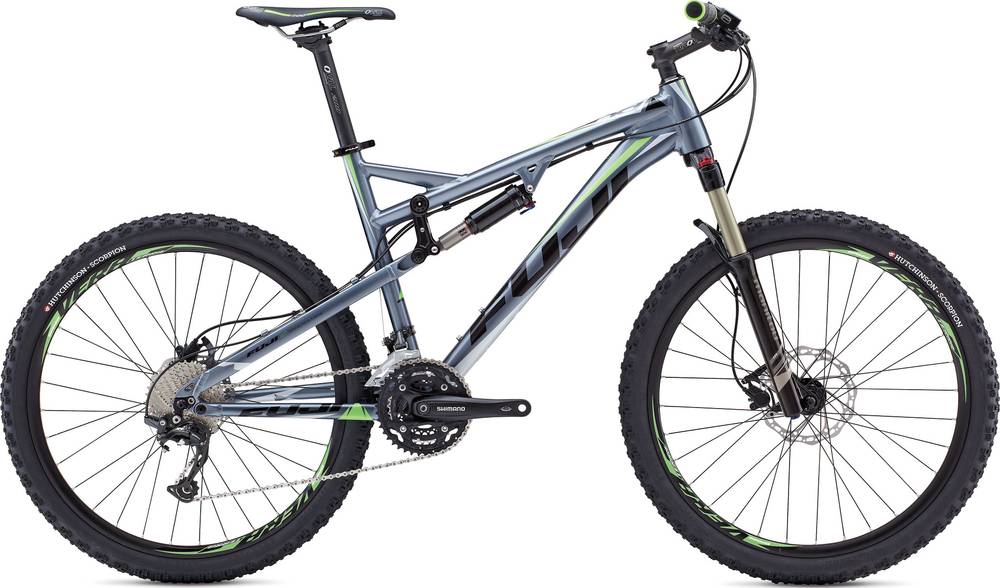

Outland 1.5 D belongs to the Fuji Outland model. Fuji launched 69 bikes of this model so far. Take a sneak peek at all Fuji Outland bikes models from 2013, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Outland 1.5 D components
Fork
Fuji Outland 1.5 D 2013 bike is equipped with the Manitou fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Fuji Outland 1.5 D 2013, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Outland 1.5 D has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
