Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver TK
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube
Suspension Fork
Rock Shox Recon Silver TK Solo Air 29 w/ remote lockout, tapered alloy steerer, 120mm travel
Rear Shock
Rock Shox Monarch RL
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 20/30-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
Shimano Deore, hollow Tech II w/ integrated spindle, 38/24T
Bottom Bracket
Shimano sealed cartridge
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rim 32h, Formula DC-51 front, DC-308 rear disc hubs, stainless black spokes
Tires
Schwalbe Rapid Rob, 29" x 2.25", 50tpi
Brakes
Brakes
Shimano 395, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano 396, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 250, 6061 alloy, flat, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO. 42B, 1 1/8" - 1.5", semi-cartridge bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.45 mm | 1.42 mm | 1.39 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 658 mm | 690 mm | 709 mm | 729 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 605 mm | 605 mm | 614 mm | 624 mm |
| Reach | 384 mm | 416 mm | 432 mm | 448 mm |
| Top Tube Length | 564.2 mm | 596.2 mm | 615.2 mm | 634.1 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1111 mm | 1143 mm | 1163 mm | 1182 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 807 mm | 810 mm | 816 mm | 818 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

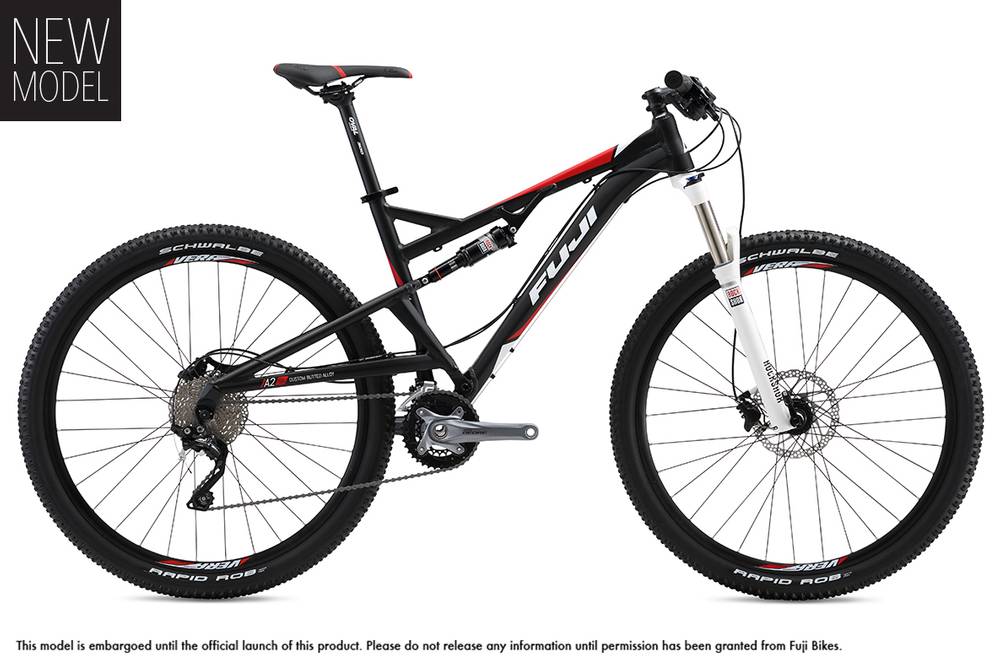

Model Overview
Outland 29 1.0 completes the Fuji Outland model. Fuji launched 69 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Outland 29 1.0 has a weight of 14 kg (30.86 lbs). In short, the average Trail bike weight is 7.86% lower than this one.
Overview of components
Fork
This bike has the RockShox Recon Silver TK fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Outland 29 1.0 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Outland 29 1.0 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Outland 29 1.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Outland 29 1.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
