Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy w/semi-integrated tapered headset w/ 1 1/2" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
RockShox XC 32 TK 29 tapered alloy steerer, 100mm travel
Rear Shock
RockShox Bar R
Drivetrain
Rear Derailleur
Shimano Deore SGS Shadow top normal, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore Rapid Fire, 30-speed
Cassette
Shimano Deore, 11-36T 10-speed
Crank
Shimano M552 Hollow Tech, 24/32/42T
Bottom Bracket
Shimano Press-Fit
Chain
KMC, 10-speed
Pedals
N/A
Wheels
Rims
Fuji custom 32H mountain 6-bolt disc hubs, WTB speed disc all mountain 29" rims
Tires
WTB Vulpine 2.1 29" Race, DNA compound, 60TPI, aramid bead
Brakes
Brakes
Tektro Draco hydraulic disc, 180/160mm rotor
Brake Levers
Tektro Draco hydraulic
Cockpit
Stem
Oval M200 alloy reverse bolt technology, 31.8mm
Handlebar
Oval M250 alloy flat bar, +/- 5mm rise, 9° sweep, 31.8mm, 710mm wide,
Headset
Oval 1 1/8-1 1/2" semi-integrated, 30mm spacers
Seat
Saddle
Oval M200 w/ CrMo rails
Seatpost
Oval M200, 31.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD | MD/LG |
|---|---|---|---|
| Bottom Bracket Height | 334 mm | 334 mm | 332 mm |
| Top Tube Length | 588 mm | 610 mm | 639 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1126 mm | 1148 mm | 1177 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 42 mm |
| Standover Height | 843 mm | 844 mm | 846 mm |
| Wheels | 29" | 29" | 29" |
About this model

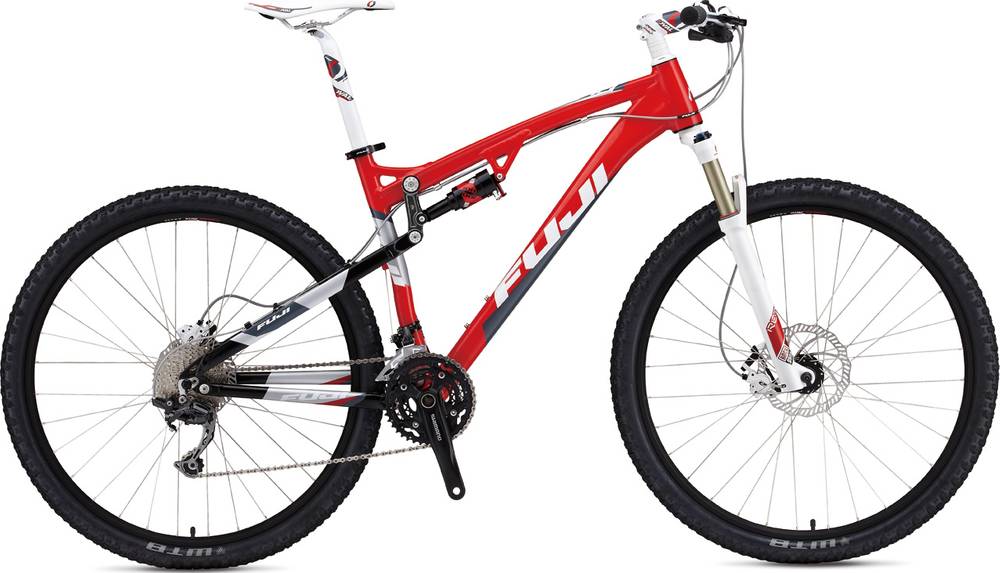

Outland 29 3.0 completes the Fuji Outland model. Fuji released 69 bikes variations of this model so far. You can easily view all of the Fuji Outland bikes models from 2012, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Outland 29 3.0 comes factory-installed with the RockShox fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Outland 29 3.0 2012 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Outland 29 3.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
