Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL custom-butted alloy tubing w/ hydroformed top tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket, sealed cartridge bearing pivots
Suspension Fork
Rock Shox Reba RL Solo Air 29 w/ remote lockout, tapered alloy steerer, 15x110mm thru axle, 120mm travel
Rear Shock
Rock Shox Monarch RT3
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 11-speed
Front Derailleur
Shimano Deore XT, side swing, direct-mount
Shift Levers
Shimano Deore XT Ispec, Rapid Fire, 22-speed
Cassette
Shimano Deore XT, 10-40T, 11-speed
Crank
Shimano Deore XT, hollow Tech II w/ integrated spindle, 36/26T
Bottom Bracket
Shimano sealed cartridge, PF30 adaptor included
Chain
KMC X11 w/ MissingLink, 11-speed
Pedals
N/A
Wheels
Rims
DT Swiss X1900 Spline wheelset, 28h, 15x110mm front, 148x12mm rear, DT Swiss Champion spokes
Tires
Schwalbe Rocket Ron, 29" x 2.25" Snake Skin, 67tpi, folding, tubeless ready
Brakes
Brakes
Shimano Deore XT, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano Deore XT, hydraulic disc
Cockpit
Stem
Oval Concepts 707, 6061 alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts 650, 7050 alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO. 9M/12B, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 400 w/ CrMo rails
Seatpost
Oval Concepts 650, 7050 alloy, 30.9mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.45 mm | 1.41 mm | 1.32 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 663 mm | 698 mm | 721 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 608.3 mm | 608.3 mm | 617.6 mm | 617.6 mm |
| Reach | 383.8 mm | 418.8 mm | 438.2 mm | 467.2 mm |
| Top Tube Length | 553 mm | 588 mm | 610 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1108 mm | 1143 mm | 1166 mm | 1195 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 764 mm | 774 mm | 773 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

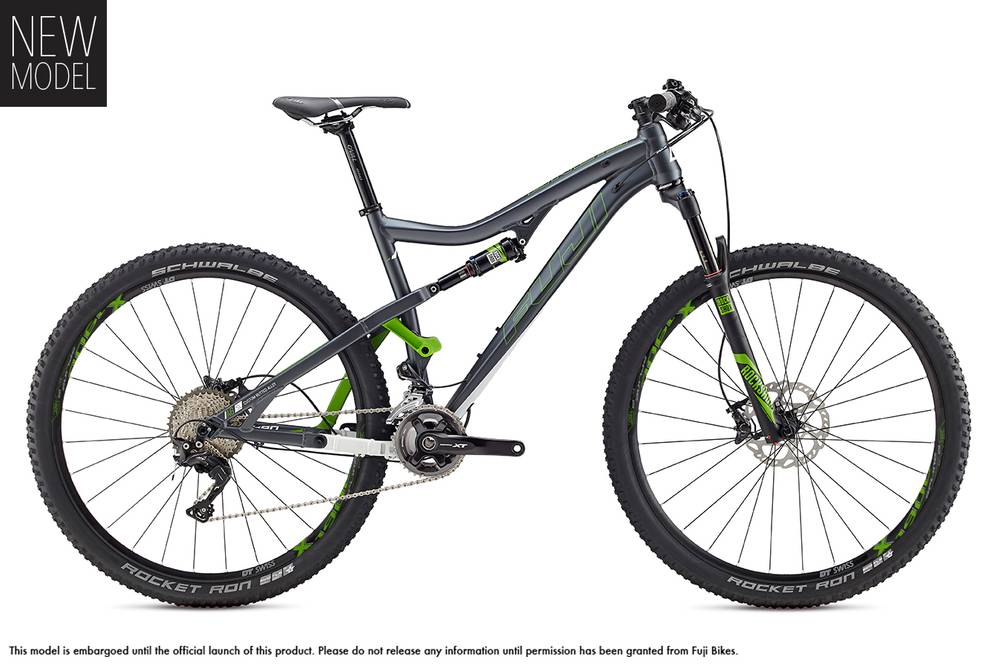

Rakan 29 1.3 is part of the Fuji Rakan model. Fuji released 37 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Rakan 29 1.3 has a weight of 13.03 kg (28.73 lbs). In conclusion, the average Trail bike weighs 0.39% less than Rakan 29 1.3.
Overview of components
Fork
The Rakan 29 1.3 comes factory-installed with the RockShox Reba fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Fuji Rakan 29 1.3 2016, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Rakan 29 1.3 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
