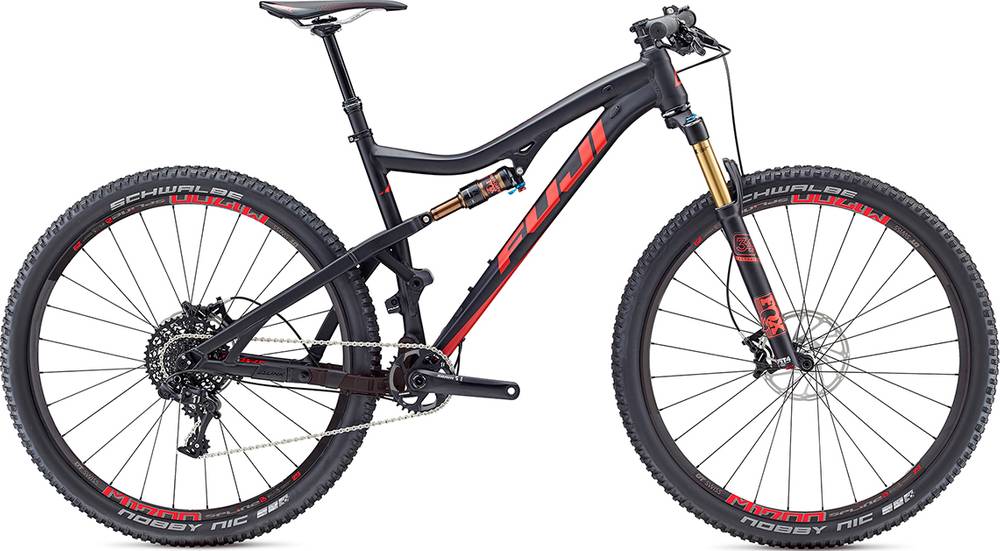

Fuji Rakan 29 3.1 2017
2017 Mountain
Estimate price |
4,949$
Weight | 13.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL custom-butted alloy front and rear triangle w/ shaped oversized down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket, sealed cartridge bearing pivots, w/ MLink patented suspension system, 148x12mm dropout, replaceable hanger, 120mm travel
Suspension Fork
Fox 34 Factory Float 29, FIT4, 2-position w/ Kashima coating, remote lockout, tapered alloy steerer, Boost 110x15mm thru axle, 120mm travel
Rear Shock
Fox Float EVOL Factory 3-position w/ Kashima coating
Drivetrain
Rear Derailleur
SRAM X1, 11-speed
Shift Levers
SRAM X1, 11-speed
Cassette
SRAM XG-1175, 10-42T 11-speed
Crank
SRAM X1, Direct Mount, Boost, 32T
Bottom Bracket
SRAM BB PF30
Chain
KMC X11EL w/ MissingLink, 11-speed
Wheels
Rims
DT Swiss M1700 Spline Two 22.5 wheelset, 28h, Boost 110x15mm front, Boost 148x12mm rear, DT Swiss Competition spokes
Tires
Schwalbe Nobby Nic, 29" x 2.35" Snake Skin, Trail Star, 67tpi, folding, tubeless ready
Brakes
Brakes
SRAM Guide RS, hydraulic disc, 180mm rotors
Brake Levers
SRAM Guide RS, hydraulic disc
Cockpit
Stem
Oval Concepts 707, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 650 riser bar, 7050 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 620, ergo shape, single lock on, single density Kraton
Headset
FSA NO. 9M/12B, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts X38 with pressure relief zone, cromo rail
Seatpost
RockShox Reverb Stealth dropper, 30.9mm, 15, 17" - 100mm travel, Fox Factory Transfer Stealth dropper, 30.9mm, 19, 21" - 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.45 mm | 1.41 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 663 mm | 698 mm | 721 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 609.5 mm | 609.5 mm | 618.2 mm | 619.5 mm |
| Reach | 384 mm | 419 mm | 438.4 mm | 467.4 mm |
| Top Tube Length | 553.5 mm | 588.5 mm | 610.5 mm | 639.5 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381.5 mm | 432.2 mm | 482.9 mm | 533.6 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1109 mm | 1144 mm | 1167 mm | 1196 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 764 mm | 774 mm | 774 mm | 791 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rakan 29 3.1 is a Fuji Rakan model. Fuji launched 37 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Fuji Rakan 29 3.7 2017 is the most affordable bike of this model and has a price of 2099$. On the other hand, Fuji Rakan 27.5+ 3.1 2017, is the most expensive and costs 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 4949$. Doing a quick comparison, we notice that Rakan 29 3.1 price is 79.18% higher than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.37 kg (29.48 lbs), Fuji bike is slightly heavier than average. In short, the average Trail bike weight is 3% lower than this one.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The Rakan 29 3.1 has a rear shock with a travel of 120mm. The model Fox Float EVOL Factory 3-position w/ Kashima coating is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Rakan 29 3.1 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Rakan 29 3.1. Therefore, climbing or descending will be a breeze.
