Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL super-butted alloy front and rear triangle w/ shaped oversized down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket, sealed cartridge bearing pivots, w/ MLink patented suspension system, Boost 148x12mm dropout, replaceable hanger, 120mm travel
Suspension Fork
RockShox Recon RL 29 Solo Air w/ tapered alloy steerer, Boost 110x15mm thru axle, 130mm travel
Rear Shock
RockShox Monarch RL
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX trigger, 11-speed
Cassette
SRAM PG1130, 11-42T, 11-speed
Crank
SRAM NX, 32T
Bottom Bracket
SRAM, PF30
Chain
KMC X11 w/ MissingLink, 11-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Formula CL-511, 110mm x 15mm, centerlock, Rear: Formula DC-1248, 148mm x 12mm, centerlock
Rear Hub
Front: Formula CL-511, 110mm x 15mm, centerlock, Rear: Formula DC-1248, 148mm x 12mm, centerlock
Rims
WTB STP i25 rims 32H rims, Formula CL-511 Boost front, Formula DC-1248 Boost rear disc hubs, stainless black spokes, tubeless ready
Spokes
stainless, black
Tires
Schwalbe Nobby Nic Performance, 29" x 2.35", 67tpi, Addix, folding, tubeless compatible
Brakes
Brakes
Shimano M315, hydraulic disc, 180mm rotors
Brake Levers
Shimano M315, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts flat bar, 6061 alloy, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 634, large diameter pads, single lock on, dual density
Headset
FSA NO. 9M/12B, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 238 trail, steel rail
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.45 mm | 1.41 mm | 1.33 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 663 mm | 698 mm | 721 mm | mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | mm |
| Stack | 609.5 mm | 609.5 mm | 618.2 mm | 619.5 mm |
| Reach | 384 mm | 419 mm | 438.4 mm | 467.4 mm |
| Top Tube Length | 553.5 mm | 588.5 mm | 610.5 mm | 639.5 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381.5 mm | 432.2 mm | 482.9 mm | 533.6 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1109 mm | 1144 mm | 1167 mm | 1196 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 37 mm |
| Standover Height | 764 mm | 774 mm | 774 mm | 791 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

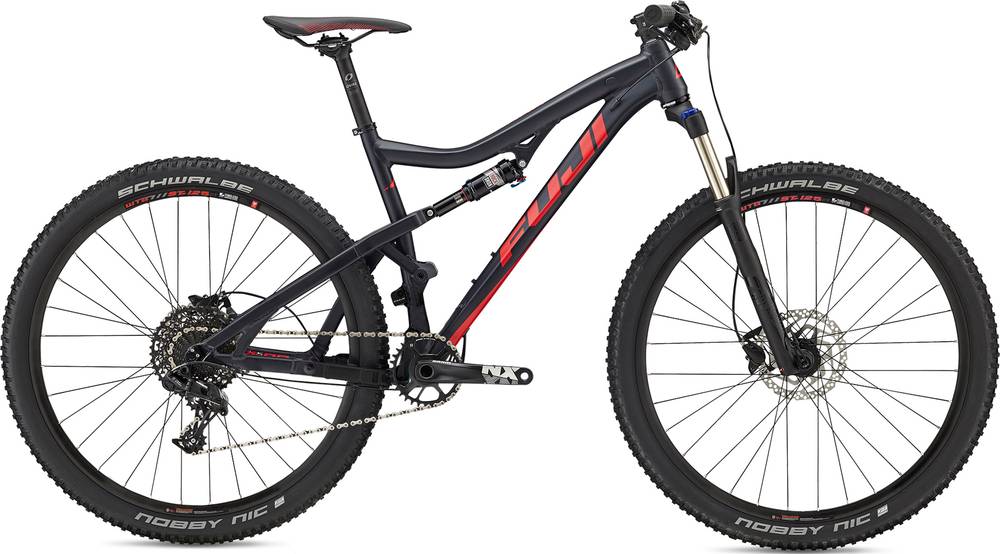

Rakan 29 3.6 is a Fuji Rakan model. Fuji launched 37 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Fuji Rakan 29 3.6 2018 is the cheapest bike model and costs 2499$. Fuji Rakan 29 3.4 2018 is the most expensive one and costs 3699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. If we compare this with the average Trail bike cost we notice that the price is 10.52% smaller.
Rakan 29 3.6 components
Fork
The Rakan 29 3.6 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RL model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Rakan 29 3.6 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rakan 29 3.6 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
